Article Rating:
Condition:New

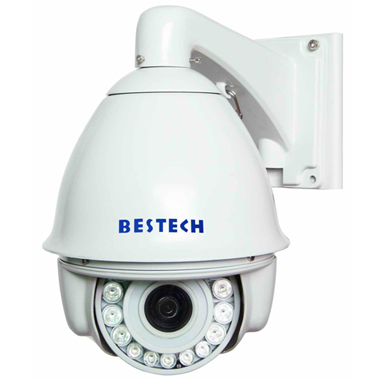

Model:BT-8803
Usually Ships in 3-5 days
Important Notice!
Item will be drop shipped directly from the
manufacturer/distortion-cancelable and
non-returnable.Usually ships in 3-5 days
Product Details
Description:
* PWM function,intelligent IR illumination & power consumption is variable,dependant the zoom factor
* IR distance 140M; Multiple languages for OSD menu, English, Spanish etc.;
* Support ambient light detection,IR Illumination On 1-15 grade selectable;
* Dome ID, baud rate, communication protocol can be set via the controller
* Supported Protocols : Pelco-D/P; Others on special request.
* 7'' Total metal body construction, waterproof IP 66;
* Optional IP module (built in provision);
* Optional , 4 Alarm inputs and 2 alarm outputs.
| Specifications: | |||||||
| Horizontal Rotation Speed | 200¡ã/s | ||||||
| Horizontal Rotation Range | 360¡ã | ||||||
| Tilt Rotation Speed | 100º/s | ||||||
| Tilt Rotation Range | 94¡ã | ||||||
| Auto Flip | Horizontal 180¡ã,Vertical 90¡ã | ||||||
| Auto control IR LED | PWM | ||||||
| A-B Scan | User programmable | ||||||
| A-B Scan speed | 1-9 speed setting available | ||||||
| Dwell Preset | 1-64s interval | ||||||
| Preset points | 220 | ||||||
| Go to preset speed | 1-64 speed settings available | ||||||
| Guard Tours | 3 groups | ||||||
| Guard Points | Max.16 points, dwell time user selectable | ||||||
| Home Pos Time | 1-60mins available | ||||||
| Communication Protocol | Pelco-D,Pelco-P | ||||||
| Communication | RS485 | ||||||
| Baud Rate | 1200/2400/4800/9600bps | ||||||
| Privacy Mask | 8-24pcs (according to zoom module type) | ||||||
| Operating Temperature | -40¡ã- +65¡ã | ||||||
| Operating humidity | ¡Ü95% Non Condensing | ||||||
| Heater & Blower | Auto temperature control | ||||||
| Power | AC/DC15-28V ¡Ü3A | ||||||
| IR Illumination Distance | 140M | ||||||
| Power Consumption | ¡Ü 20W | ||||||
| Lightning protection | transient voltage 3000V | ||||||
| Compatible camara | SONY,LG,CNB,SAMSUMG,HITACHI | ||||||
| LED Angle of Illumination | Ø20=8,Ø16=5 | ||||||
