Model: BT-LOB
Place of Origin: Guangdong China (Mainland)
Usually Ships in 3-5 days
Important Notice!
Item will be drop shipped directly from the
manufacturer/distortion-cancelable and
non-returnable.Usually ships in 3-5 days
Product Details
Key Feature:
* Monolayer aluminum sell install easily and quickly, can dissipate heat more sufficiently. Black inner shell makes sharper monitor
* Be compatible with common cassette mechanism of camera, like SONY, HITACHI, LG and other famous brands with high resolution
* Running smoothly with low speed, subwoofer noise and no image dithering
* 64 preset positions.
* 1 Patrol tracking routs and 1 auto level scan routs.
* Variable rotation£¨pan 0 ¡« 15º/s ;tilt 0 ¡« 15º/s£©, auto level scan
* Continuous 360 º rotations in Omni-directions with no fade zone; Rotation speed can be adjusted by tilting angle of the joystick
* Auto flips with vertical 180 º in Omni-directions, no fade zone.
* RS485 integrated various protocols, PELCO-D, PELCO-P etc
* 3 class lightning defend, built in 3000V lightning proof, surge resistant
Specification:
Electrical specifications | |
Power Input | AC24V/2A(no identity "+"or "-") |
Power Consumption | 20W |
Settings: | |
Decoder | Built-in |
Preset Position | 64 presets |
Left&Right Rotation Range | 360¡ãContinuous Rotation |
Left&Right Speed | 0.1¡ã£15¡ã/S |
Up&Down Rotation Range | 90¡ãVertical, 180¡ãAuto flip |
Up&Down Speed | 0.1¡ã£15¡ã/S |
Control Method | RS485 |
Protocol | Pelco-P/D etc |
Baud rate | 2400bps/4800bps/9600bps/19200bps |
Working environment: | |
Working Temperature | Indoor: 0ºC ~ 50ºC |
Physical: | |

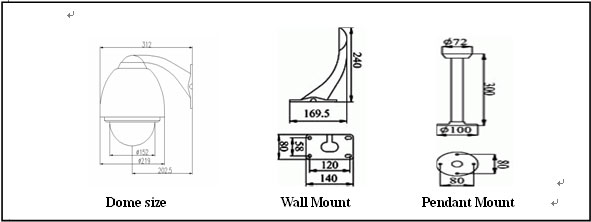

Packing Dimension(mm) | 280mm*W280mm*H390mm |
Weight (kg) | Wall Mount: 4.5 kg Pendant Mount: 4.65 kg |
