Model£ºBT-DK01
Place of Origin: Guangdong China (Mainland)
Usually Ships in 3-5 days
Important Notice!
Item will be drop shipped directly from the
manufacturer/distortion-cancelable and
non-returnable.Usually ships in 3-5 days
Product Details
pecification:
| Electronic Indicator | |
| Power Input |
AC24V/220V( No identify "+"or "-") |
| Power Consumption |
20W/30W( indoor/outdoor) |
| Setting | |
| Decoder |
Built-in |
| Limit Switch |
YES |
| Temperature Control |
Indoor:NO,Outdoor:YES |
| Left&Right Rotation Range |
Continuous 355¡ãRotation |
| Left&Right Speed |
12¡ã/s |
| Up&Down Speed |
10¡ã/s |
| Control Method |
RS485/MANCHESTER/BI-PHASE code |
| Protocol |
Various of Pelco-P/D , SAE,KALATEL,VCL,AD,PHILIPS,etc. |
| Baudrate |
2400bps/4800bps/9600bps/19200bps selectable |
| Work Environment | |
| Working Temperature |
Indoor: -5ºC ~ 45ºC£¬Outdoor: -45ºC ~55ºC |
| Level of Protection |
ABS Engineering plastics, resistant water, acid rain, high temperature , rust. |
| Physics | |

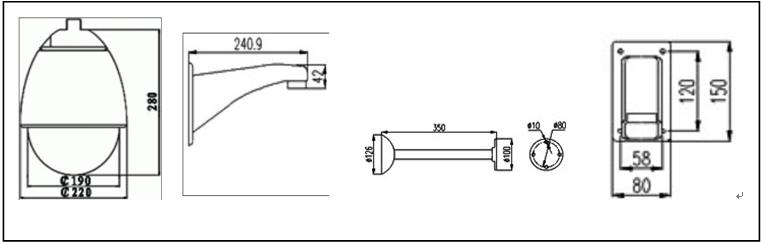

| Packing Dimension(mm) |
L280¡ÁW280¡ÁH395mm |
| Camera Dimension(mm) |
L135¡ÁW65¡ÁH65mm |
| Weight(kg) |
Indoor:3.0kg, Outdoor:3.5kg |
High Speed Camera
