Condition:New
Model:BT-7601
Usually Ships in 3-5 days
Important Notice!
Item will be drop shipped directly from the
manufacturer/distortion-cancelable and
non-returnable.Usually ships in 3-5 days
Product Details
Description:
* PWM function,intelligent IR illumination & power consumption is variable,dependant the zoom factor
* IR distance 150M; Multiple languages for OSD menu, English, Spanish etc.;
* Support ambient light detection,IR Illumination On 1-15 grade selectable;
* Dome ID, baud rate, communication protocol can be set via the controller;
* Supported Protocols : Pelco-D/P; Others on special request;
* 7",Total metal body construction, waterproof IP 66;
* Optional IP module (built in provision);
* Optional , 4 Alarm inputs and 2 alarm outputs.
| Specifications: | ||||||
| Horizontal Rotation Speed | 1-60¡ã/s | |||||
| Horizontal Rotation Range | 360¡ã | |||||
| Tilt Rotation Range | 90¡ã | |||||
| Auto Flip | Horizontal 180¡ã,Vertical 180¡ã | |||||
| Auto control IR LED | PWM | |||||
| A-B Scan | User programmable | |||||
| A-B Scan Speed | 0-64 levels setting available | |||||
| Dwell Preset | 2-60s interval available | |||||
| Preset Points | 220 | |||||
| Go to Preset Speed | 01-64 levels available | |||||
| Guard Tours | 3 groups | |||||
| Guard Points | Max.16 points, dwell time user selectable | |||||
| Home Pos Time | 0-60mins available | |||||
| PWR on Action | Memory as power off/360¡ã scan/A-B scan/Preset cruise1-3/Park action/No action | |||||
| Communication Protocol | Pelco-D,Pelco-P | |||||
| Communication | RS485 | |||||
| Baud Rate | 1200/2400/4800/9600bps | |||||
| Operating Temperature | Indoor:0¡ã~ +40¡ã Outdoor: -40¡ã~ +60¡ã | |||||
| Operating humidity | ¡Ü95% Non Condensing | |||||
| Heater & Blower | Auto temperature control | |||||
| Power | AC/DC15-28V ¡Ü3A (standard power: AC24V3A) | |||||
| IR Illumination Distance | 150M | |||||
| Power Consumption | ¡Ü 20W | |||||
| Lightning protection | transient voltage 3000V | |||||
| Compatible camara | SONY,LG,CNB,SAMSUMG,etc. | |||||
| LED Angle of Illumination | 24*24=6,Ø16=5 | |||||

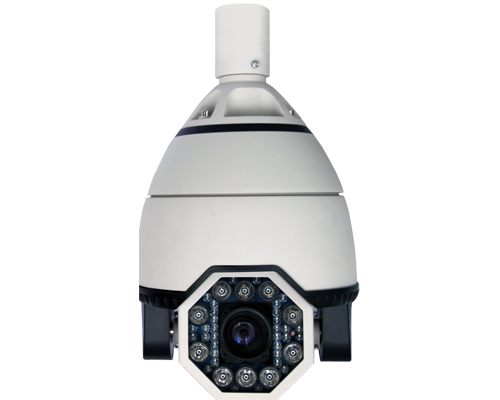

High Speed Camera
