Product Details

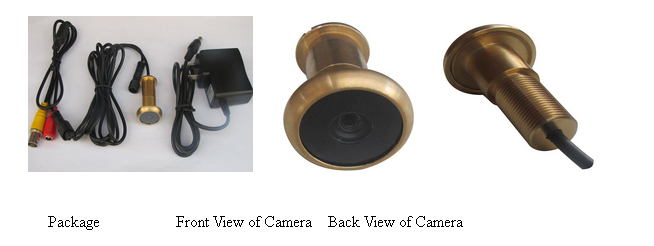

This Door Peephole uses the high sensitive imaging device and pure brass material, which brings noble and durable quality and superior imaging capabilities. Extremely low illumination, broad view angleŁ¬ultra long working life and easy installation. It's a good helper for home monitoring and burglar.
Main Features:
1. Pure brass material, noble and durable;
2. Same size with original optical peephole. Keep original appearance after installation;
3. 0.008lux extremely low illumination, which makes it can clearly see the visitor even under dim light;
4. 90 degree broad view angle;

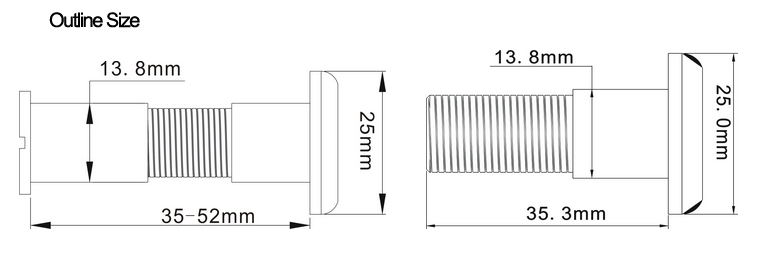

5. 13.8mm super small diameter, which is suitable to all doors with peephole. No need to drill hole, just install directly;
6. Low power consumption to assure the long time working life;

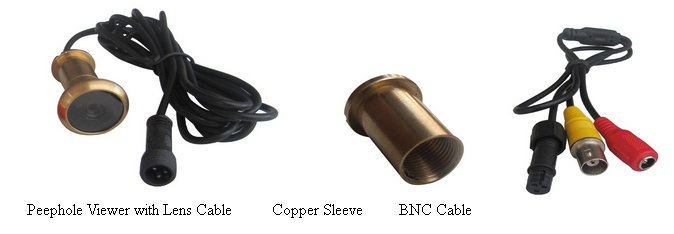

7. Directly connect BNC cable to TV/monitor/DVR, it's very quick & easy.
Installation:
1. Use one coin or other tool to uninstall the original optical viewer;
2. Unscrew copper sleeve off and pass lens cable through peephole from outside to inside of door. Set lens cable into sleeve; screw sleeve into peephole inside of door. (Pay attention to horizontal direction of lens);
3. Connect lens cable with BNC cable and fix it well. Then connect BNC cable with TV/monitor/DVR to start monitoring.
Specification:
| Pick Up Element : | Single chip 1/4 CMOS | |
| Number of pixel : | NTSC:720(H) x 480(V) | PAL : 720(H) x 576(V) |
| Sensor dimension: | 3.584mm(H) x 2.688(V) | |
| Horizontal Resolution: | Approximately 480 TVL | |
| Sensitivity: | 0.008Lux/F1.2 | |
| Lens & View angle | F1.2 / 90deg | |
| S/N Ratio: | 48DB | |
| Auto Gain Control : | Out | |
| White Balance: | Out | |
| Back Light: | Out | |
| Video Out: | 13G | |
| Work Current: | 1.0V p-p / 75ohm | |
| Weight: | 35G | |
| Work Current : | DC 12V : 35mA | |
| Power Requirement : | DC 3.6-24V | |
| Operating: | -10 to + 50 Degrees Celsius ,less than 90% RH | |
| Connection: | PIN1->Red DC PIN2->Black GND PIN3->Yellow VIDEO OUT | |
