Condition:New
Model:SPY6520LED
Usually Ships in 3-5 days
Important Notice!
Item will be drop shipped directly from the
manufacturer/distortion-cancelable and
non-returnable.Usually ships in 3-5 days
Product Details
Usage
1) CCTV cameras can be used directly with a standard TV/VCR or RCA video monitor;
2) To view more than one CCTV camera on your TV/VCR you will need a quad or multiplexer;
3) To view on your computer or laptop you will need a DVR card or USB;
4) A standalone system that records is a standalone DVR;
5) CCTV wired cameras can add a 2.4GHz wireless transmitter module,then it can work with wireless receivers.
Features:

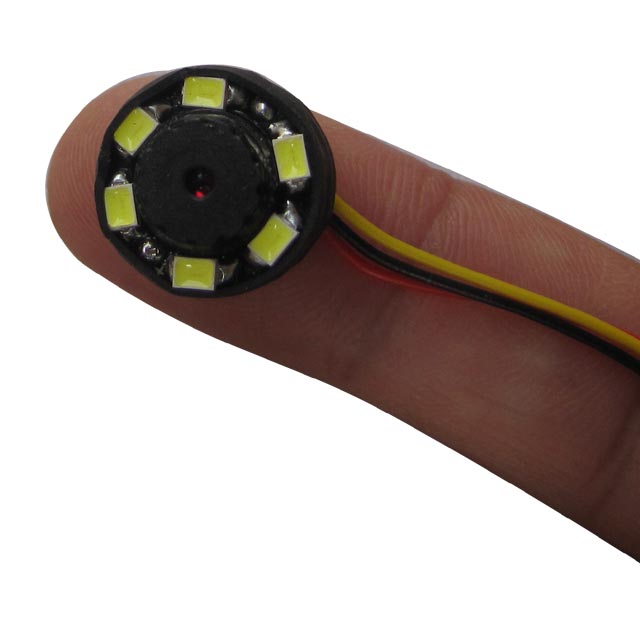

It's a ultra small high definition CCTV camera with excellent night vision.
Size is 14.5 x 14.5 x 15.5mm only, Weight is 3g! Very easy to install.
Minimum illumination is 0.0lux, which can view clearly in complete darkness.
Full TV system. Applicable worldwide.
Specification :
| PICK UP ELEMENT | Single chip 1/3 CMOS | |
| SYSTEM | NTSC | PAL |
| NUMBER OF PIXEL | NTSC:656(H)¡Á492(V) | PAL:786(H)¡Á576(V) |
| IMAGE SIGNAL PROCESS | Digital Signal Processing System | |
| SENSOR DIMENSION | 4.75mm(H)¡Á3.55mm(V) | |
| HORIZONTAL RESOLUTION | Approximately 520TV Lines | |
| SCANNING SYSTEM | 2 : 1 Interlace | |
| SENSITIVITY | 0.00Lux/5M (LED OPEN) | |
| LENS & VIEW ANGLE | 0.5mm F2.0 / 55 ¡ã | |
| S/N RATIO | 52dB | |
| ELECTRONIC SHUTTER | OUT £¨1/60 S TO 1/100000 S£© | OUT £¨1/50 S TO 1/100000£©S |
| AUTO GAIN CONTROL | OUT | |
| WHITE BALANCE CONTROL | OUT | |
| BACK LIGHT COMPENSATION | OUT | |
| VIDEO OUT | 1.0V p-p/75ohm | |
| SIZE (L x D) | 14.5 x 14.5 x 15.5mm | |
| WEIGHT | 3g | |
| WORK CURRENT | LED on 200mA | |
| POWER REQUIREMENT | DC 5.0V | |
| OPERATING TEMPERATURE | - 10¡ã C ~ +50¡ãC , less than 90% RH | |
| Connection | PIN1¨¤ Red DC5V PIN2¨¤ Black GND PIN3¨¤ Yellow VIDEO OUT | |
Contents:
1 * Mini camera;

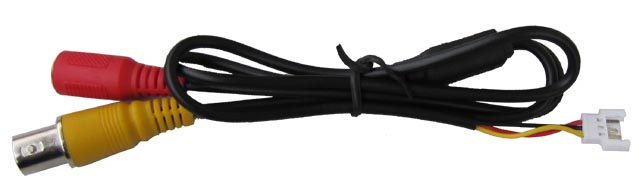

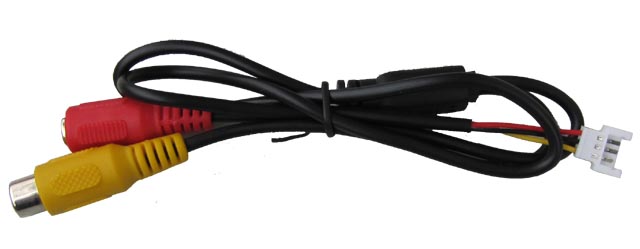

1 * RCA/BNC cable;
1 * AC adapter .
