Article Rating:
Condition:New
Size:15.5*15.5*20mm
DC3.6-24V Wide voltage
480TVL, 0.1lux/F2.8
Model:MC91AP36
Usually Ships in 3-5 days
Important Notice!
Item will be drop shipped directly from the
manufacturer/distortion-cancelable and
non-returnable.Usually ships in 3-5 days
Product Details
Main Features :
* 90 degree wide view angle pinhole lens,.6-24v wide voltage;
* Small Size: easy to install into narrow room and slim tube, etc.;
* High resolution, high sensitivity, high SNR;
* Day & night dual mode auto switch;
* Low Illumination, Low Current and power consumption;
* CMOS sensor generation IV+DSP chip offer true color & HD video
| PICK UP ELEMENT | Single chip 1/4CMOS | |
| SYSTEM | NTSC | PAL |
| NUMBER OF PIXEL | NTSC:720(H)กม480(V) | PAL:720(H)กม576(V) |
| SENSOR DIMENSION | 3.584mm(H)กม2.688mm(V) | |
| HORIZONTAL RESOLUTION | Approximately 480TV Lines | |
| SENSITIVITY | 0.1Lux/F2.8 | |
| LENS & VIEW ANGLE | F2.8/ 90กใ | |
| S/N RATIO | 48dB | |
| AUTO GAIN CONTROL | OUT | |
| WHITE BALANCE CONTROL | OUT | |
| BACK LIGHT COMPENSATION | OUT | |
| VIDEO OUT | 1.0V p-p/75ohm | |
| WEIGHT | กกกก6g | |

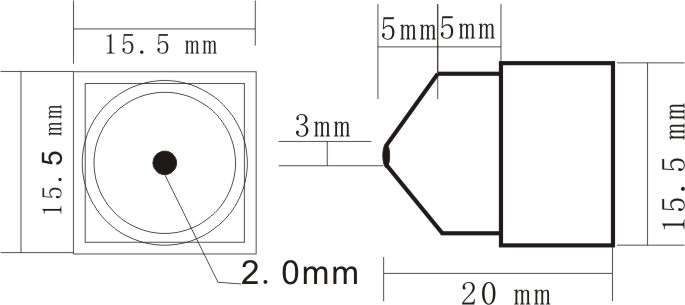

| SIZE(LXWXH) | 15.5X15.5X20mm | |
| WORK CURRENT | DC12V: 45mA DC5V: 95mA | |
| POWER REQUIREMENT | DC:3.6V-24V | |
| OPERATING TEMPERATURE | - 10กใ C ~ +50กใC ,less than 90% RH | |
| Connection | PIN1=> Red DC5V /12V PIN2=>Black GND PIN3=>Yellow VIDEO OUT | |

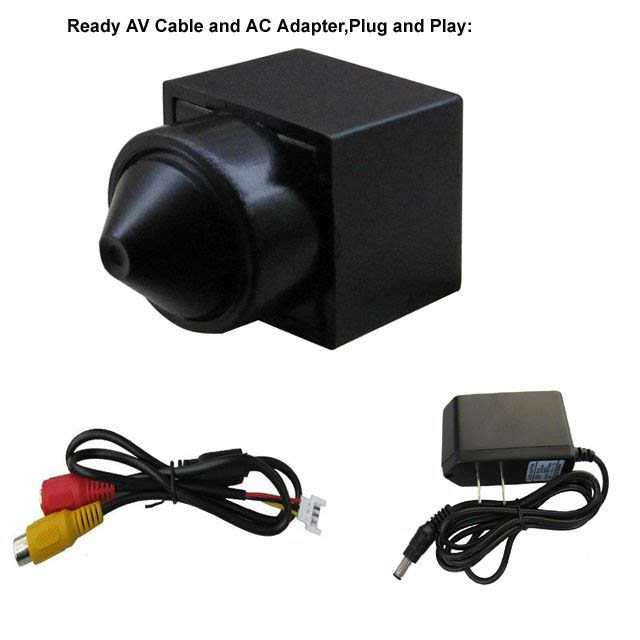

Contents:
* mini camera X1;
* RCA BNC cable X1;
* AC adapter DC5VX1
