Article Rating:
Condition:New
Model:SPYMC90V
Usually Ships in 3-5 days
Important Notice!
Item will be drop shipped directly from the
manufacturer/distortion-cancelable and
non-returnable.Usually ships in 3-5 days
Product Details
Main Features:

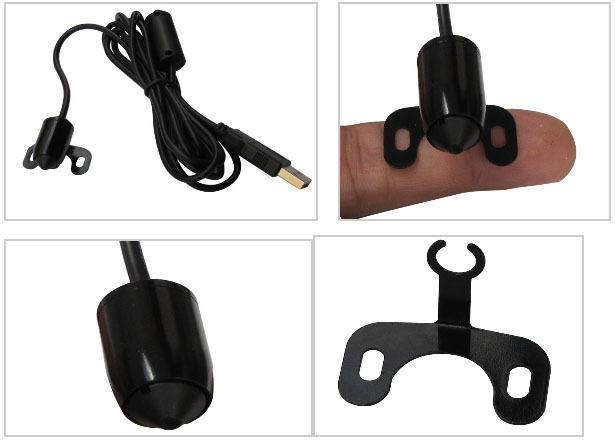

1. Small size with removable and foldable mounting holes: easy to install at any hidden places, including into narrow rooms and slim tubes, etc.;
2. Wireless transmission,not limited by cable.Very convenient to put it anywhere.Just plug & play.
3. High resolution(786X576pix;520TVL), high sensitivity, high SNR;
4. Day & night dual mode auto switch and continuous working;Low Illumination(0.008lux), high quality video record function;
5. Wide view angle(90 degree);
6. Strong output power brings long transmission range up to 150m(L.O.S.)
7. Convenient power supply and continuous working.
8.Encrypted frequency(2.3G) available to avoid interference from Wifi equipments,WLAN network, bluetooth equipments;and other general 2.4GHz equipments can't receive your signal,protect privacy well.
Usage:

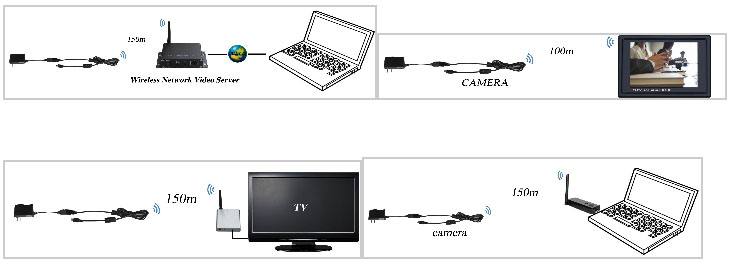

Just plug it to USB port of AC adapter,computer,camera starts to work.And at the same time, you can use any 2.4GHz wireless receivers (like web video server, wireless DVR/ AV receiver/ USB receiver) to receive and record real time video and audio.8 channels available for your choice.
Package Content:
1) 520TVL Wireless Bullet Camera X 1PC;
2) AC Adapter X 1 PC;
3) User manual X1 PC
| Frequency | 2.4G | 2414Mhz(CH1) 2432MHz(CH2) 2450MHz(CH3) 2468MHz(CH4) | Working channel:1 of 8 |
| 2.3G | 2370Mhz(CH1) 2390MHz(CH2) 2490MHz(CH3) 2510MHz(CH4) | ||
| Audio Subcarrier Frequency | 6.0Mhz | ||
| Antenna | 2.4GHz built-in antenna | ||
| RF Output Power | 100mW | ||
| Transmission Range | 150 meters | ||
| Total Pixels | NTSC:656(H)×492(V) | PAL:786(H)×576(V) | |
| Horizontal Resolution | 520TV Lines | ||
| Minimum Illumination | 0.008Lux/F1.2 | ||
| Lens & View angle | 90 ° | ||
| S/N Ratio | ﹥48dB | ||
| Size (L) | 1.8m {lens size (L x D)：27mm X 15mm } | ||
| Net Weight（g） | 50g | ||
| Current | 160mA | ||
| Voltage | DC 5V | ||
| Operation Temperature | - 20°C ~ + 50°C ，Relative Humidity:85﹪ | ||

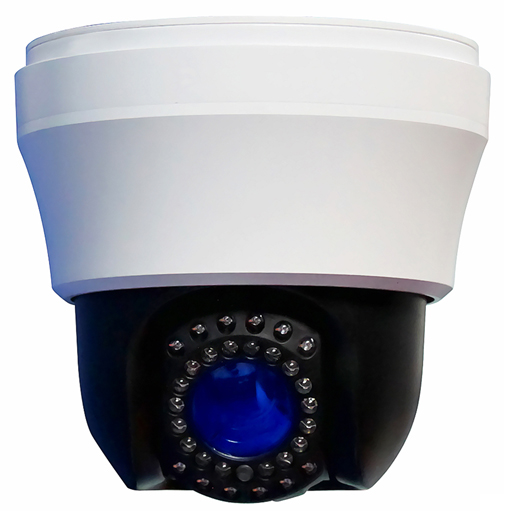

High Speed Camera
