Condition:New
Model:MTV-54G10HP
Usually Ships in 3-5 days
Important Notice!
Item will be drop shipped directly from the
manufacturer/distortion-cancelable and
non-returnable.Usually ships in 3-5 days
Product Details
* 10X optical zoom auto focus camera
* 1/4" COLOR ZOOM CCD CAMERA
* Mintron MTV-54G10HP 10X 1/4 COLOR ZOOM CCD CAMERA
* ATW: Auto tracking white balance.
* AWC: One push lock white balance.
Features:
| MODEL NO. | MTV-54G10HN | MTV-54G10HP | |||
| TV SYSTEM | NTSC | PAL | |||
| IMAGE SENSOR | 1/4-inch CCD Image Sensor | ||||
| CCD TOTAL PIXELS | 811(H) X 508(V) | 795(H) X 596(V) | |||
| SCANNINGSYSTEM | 525 lines, 60 fields/sec | 625 lines, 50 fields/sec | |||
| SYNC SYSTEM | Internal / VD-Lock | ||||
| MINIMUM ILLUMINATION | Legacy mode | 2.5 Lux ( F1.8, 5600ºK) | |||
| Star light Mode | 0.07 Lux ( F1.8, 5600ºK ) | ||||
| RESOLUTION | 480TVL | ||||
| S/ N RATIO |
48dB ( MIN ) / 52dB ( TYP ) (AGC OFF£¬r=1£¬APC OFF£¬Y-OUT) | ||||
| WHITE BALANCE | Mode | ATW / AWB / FIX ( Zero color rolling) | |||
| Range | 3200 ~ 9600 ºK | ||||
| B.L.C. FUNCTION | Super BLC,48 zone BLC | ||||
| GAMMA CORRECTION | 0.45 /1 | ||||
| AGC | AUTO (18dB max) | ||||
| ALC | AUTO / FIX | ||||
| IMAGE NEGATIVE | Select by OSD menu | ||||
| MONITION DETECT | 48 zone (select by OSD) | ||||
| CROSS LINE | ON/OFF Select by OSD menu (position adj. by software) | ||||
| FREEZE FUNCTION | Alarm in trigger or Select by OSD | ||||
| ELECTRONIC SHUTTER | AES : 1/60(1/50) ~ 1/120,000 sec. / MANU : 8 step | ||||
| LENS | 10X Optical ZOOM LENS ,F1.8(W)~2.9(T),f=4.2mm(W)~42mm(T) | ||||
| Diagonal | W(56.4º) / T(6.1º) | ||||
| Hor. | W(46.4º) / T(4.9º) | ||||
| Ver. | W(35.6º) / T(3.7º) | ||||
| ZOOM | 100X (10X optical 10X Digital) | ||||
| FOCUS | Auto / Manual | ||||
| POSITION | 64 Position (Zoom£¬Focus) | ||||
| VIDEO OUTPUT | Composite & Y/C output 1.0Vp-p at 75 ohm | ||||
| CONTROL FUNCTION | Dry Switch , RS-232C/RS-485(Drive option) , OSD control | ||||
| OSD LANGUAGE SELECT | ENGLISH / CHINESS_Simp / JAPANESE | ||||
| COMMUNICATION BAUD RATE | 9600 BPS | ||||
| OPERATION TEMPERATURE | -10”ę TO 50”ę | ||||
| OPERATIONAL HUMIDITY | within 85%RH | ||||
| POWER SUPPLY | DC12V”Ą1V / 3.6W(Max) | ||||

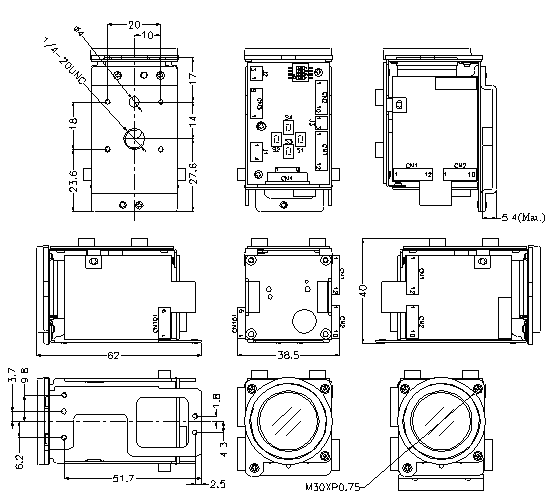

| DIMENSIONS | 62 mm (L) X 38.5 mm (W) X 40 mm (H) | ||||
