Portable 3.5 inch TFT display(video input and out put) CCTV tester

  • print

Portable 3.5 inch TFT display(video input and out put) CCTV tester

-- sales from skycneye.com

Article Rating:


Place of Origin: Guangdong China (Mainland)

Usually Ships in 3-5 days

Important Notice!
Item will be drop shipped directly from the
manufacturer/distortion-cancelable and
non-returnable.Usually ships in 3-5 days

Product Details

Key Feature
 * Portable tester with3.5 inch TFT display(video input and out put)
 * Auto identity NTSC/PAL
 * Power-saving mode can display in a standby state
 * Small appearance, highly integrated and practical
 * Audio test function, built-in 0.5 speaker, support for audio input / output
 * Support DC12V output, charging for camera.
 * Built-in rechargeable battery DC3.7V/2200mAh, Automatic charging function
 * Power supply: Battery-powered, computer USB port power supply, DC5V/2Aadapter power supply
 * Particularly suitable for project installation of the camera effects, the lens range, the lens view angle, etc. adjust positioning, saves time and effort, convenience

Battery features:

 Standard Capacity: 2200mAh
 Standard Voltage: 3.7V
 Maximum charge voltage: 4.25V


input voltage 5V10% 2A(electric current)
battery DC3.7V2200mAh(Rechargeable lithium battery)
Video signal formats NTSC/PAL(auto-identity)
Video output mode 1.0Vp-p(Full)
louder speaker 8/0.5w
charge time 5-6hours
power output 12V/350mA
working temperature -20桫+60
Packing dimension L185mm*W145mm*H80mm
Weight N.W: 163g G.W: 595g

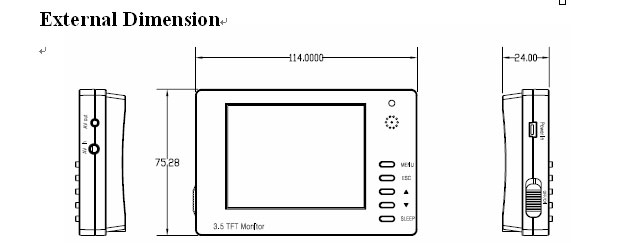

External Dimension:
