1/4 Sony FCB-EX1000P Color CCD Camera



  • print

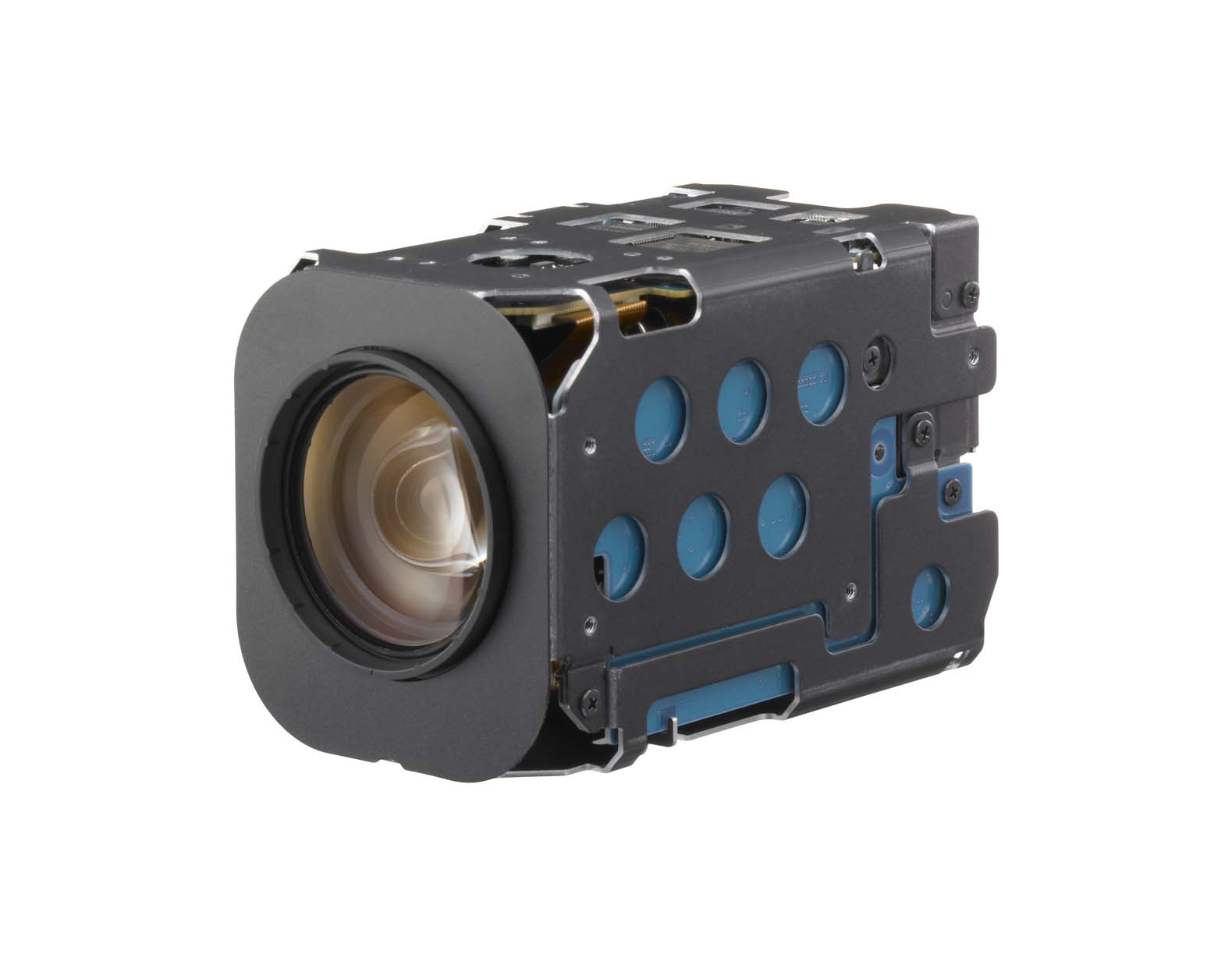

1/4 Sony FCB-EX1000P Color CCD Camera


Sony FCB-EX1000P ICR 1/4" EXview HAD CCD Color Camera-- sales from skycneye.com

Article Rating:

Condition:New
Model: Sony FCB-EX1000P


Usually Ships in 3-5 days

Important Notice!
Item will be drop shipped directly from the
manufacturer/distortion-cancelable and
non-returnable.Usually ships in 3-5 days

Product Details

Description:

Sony's new FCB-EX1000P camera offers excellent picture quality and extremely high zoom capability. The FCB-EX1000P color block camera combines a new exceptionally high 36X zoom lens with an expansively wide/telephoto horizontal field of view. The SONY FCB-EX1000P camera incorporates a type EXview HAD CCD for high sensitivity in extreme low light environments. For optimized sensitivity in both day and night-time shooting applications, the Sony FCB-EX1000P camera incorporates an Auto ICR function and excels in security domes and traffic monitoring applications.


SPECIFICATIONS:
* Image Sensor: 1/4 type EXview HAD CCD
* Number of Total Pixels: Approx. 380,000 pixels (NTSC), 440,000 pixels (PAL)
* Lens: 36x optical zoom, f=3.4 mm (wide) to 122.4 mm (tele), F1.6 to F4.5
* Digital Zoom: 12x (432x with optical zoom)
* Angle of View (H): 57.8 degree (wide end) to 1.7 degree (tele end)
* Min. Working Distance: 1.5 m at tele end
* Electronic Shutter: 1/1 to 1/10,000 s, 22 steps
* S/N Ratio: More than 50 dB
* Sync. System: Internal / External (V-lock)
* Min. Illumination: 1/60 s mode: 1.4 lux typical (F1.6, 50 IRE) / 1/4 s mode: 0.1 lux typical (F1.6, 50 IRE)
* White Balance: Auto, ATW, Indoor, Outdoor, One Push, Manual
* Gain: Auto / Manual (-3 to 28 dB, 2dB steps)
* AE Control: Auto, Manual, Priority Mode, Bright, EV compensation, Backlight compensation, Slow AE
* EV Compensation: -10.5 to 10.5 dB (1.5 dB steps)
* Backlight Compensation: On / Off
* Focusing System: Auto (Sensitivity: normal, low), One-push AF, Manual, Infinity, Interval AF, Zoom trigger AF
* Privacy Zone Masking: On/Off (24 positions)
* Flicker Cancel: Auto
* Picture Effects: E-Flip, Nega Art, Black & White, Mirror Image
* Camera Operation Switch: Zoom tele, Zoom wide
* Video Output: VBS: 1.0 Vp-p (sync negative), Y/C
* Camera control interface: VISCA (TTL signal level), baud rate: 9.6 Kb/s, 19.2 Kb/s, 38.4 Kb/s, 1 or 2 Stop bit selectable
* Storage Temperature: -20 C to 60 C (-4 to 140 F)
* Operating Temperature: 0C to 50C (32 to 122 F)
* Power Consumption: 6.0 V to 12.0 V DC / 1.6 W (motors inactive), 4.0 W (motors active)
* Dimensions (W x H x D): 50.0 x 57.5 x 87.9 mm
* Mass: Approx. 230 g

HIGHLIGHTS:
* 1/4 type EXview HAD CCD
* Minimum Sensitivity of 1.4 lux (50 IRE)
* 432x optical zoom (36x zoom / 12x optical)
* High Performance Digital Signal Processor (DSP)
* Auto ICR (IR Cut filter Removal) Mode
* Electronic Shutter/Slow Shutter
* Alarm Function
* Picture Freeze Function
* Electronic-Flip (E:Flip)
* High-speed serial communication (max. 38.4 kbps) and TTL signal-level control (VISCA™ protocol)
* Programmable factory preset
* Various customizable settings
* Key switch control compatibility
* VBS and Y/C video output
* Spot AE
* Internal/External sync

SONY FCB-EX1000P Camera FEATURES:

* 36X Zoom Lens - High Telephoto Zoom and W I D E Horizontal Field of View Capability:
The Sony FCB-EX1000P features a 36x lens that provides high TELEPHOTO zoom capability (1.7H-FOV) and a WIDE horizontal field of view of 57.8 and a 1.7 telephoto capability. With its 36x optical zoom lens, the Sony FCB-EX1000P camera allows for a zoom capability of up to 432x when used in combination with its 12x digital zoom. Users can zoom in on small or distant objects with exceptional clarity.

* Auto IR Cut Filter Removal (ICR)
For optimized sensitivity in both day and night-time shooting applications, the Sony FCB-EX1000P camera incorporates an Auto ICR function. With a set level of darkness, the IR Cut filter is automatically disabled (ICR ON) and the infrared sensitivity is increased. With a set level of brightness, the filter is automatically enabled (ICR OFF). The ICR automatically engages depending on the ambient light, allowing the cameras to be effective in a variety of lighting conditions.

* Enhanced "Spherical Privacy Zone Masking"
Incorporating latest generation firmware, this FCB-EX camera features an "advanced privacy zone masking" function for use with a pan/tilt system. The masking blocks can be interlocked to track with pan/tilt/zoom even when the camera is panning in a tilted position or circling.
