Article Rating:
Condition:New
Model:WAT-230VIVID
Scope: small and medium-sized enterprises
Image Size:1/4" CCD
minimum illumination : 0.3Lux/F2.0
Usually Ships in 3-5 days
Important Notice!
Item will be drop shipped directly from the
manufacturer/distortion-cancelable and
non-returnable.Usually ships in 3-5 days
Product Details

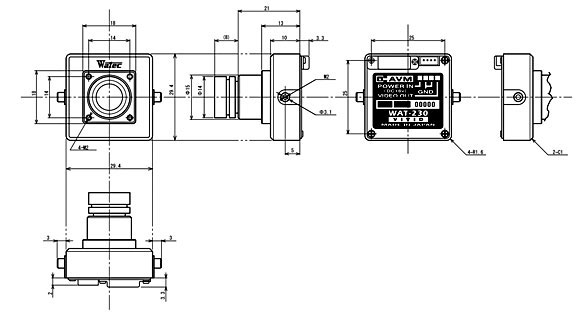

The Watec WAT-230VIVID G3.8 consists of a miniature board camera encased in a protective housing and equipped with a 3.8mm lens. A board camera is most often used in covert monitoring environments, but also presents a viable solution for various other security and non-security related CCTV applications, who for whatever reason, find themselves in need of an ultra compact camera solution. Although small in design, this camera features a CCD imager and employs a number of internal controls to maintain optimum performance in a variety of lighting environments. For added versatility, the included lens can be swapped for any one of Watec's line of miniature glass lenses.
Optional Active Visual Mate
Built into the camera are a myriad of functions that can be accessed using the optional Active Visual Mate. With this device users will be able to access and change such settings as gain, shutter speeds, back light compensation, outliner enhancer, mirror image and color/monochrome selection. Camera settings can be saved to the AVM's internal memory and then uploaded to any other VIVID model camera. The Active Visual Mate features a backlit display, includes a power supply and also operates on AA batteries.
Watec WAT-230VIVID Features:
* 1/4" Color Filter CCD
* 450 Lines
* White Balance
* Back Light Compensation
* Interchangeable Lens
* High resolution;
* Super miniatures;
* Offers a variety of lenses;
* Function can be set as required;
* White balance control;
* Electronic Iris;
* AGC;
Watec WAT-230VIVID Specifications:
| Model | WAT-230VIVID(NTSC) | WAT-230VIVID(PAL) |
| Image Sensor | 1/4" CCD | |
| total pixels | 811(H)*508(V) | 795(H)*596(V) |
| Effective Pixels | 768(H)*494(V) | 752(H)*582(V) |
| Pixel Size | 4.9um(H)*5.6um(V) | 5.0um(H)*4.77um(V) |
| imaging system | Ye, Cy, Mg, and G complementary color mosaic filters on chip | |
| Synchronization mode | internal synchronization | |
| Scanning system | 2:1 interlaced scanning | |
| video output | synthesize,Y/C:1.0 V(P-P),75¦¸,imbalance | |
| resolution ratio(H) | 450 TVL(Center) | |
| minimum illumination | 0.7lx. F2.0 | |
| S/N | More than 50dB(AGC=6dB,¦Ã= 1.0) | |
| AE (automatic exposure) | 1/60-1/100000 sec. | 1/50-1/100000 sec. |
| WB | ATW(2500K-9500K) | |
| automatic gain control | 6-30dB | |
| Gamma Features : | ¦Ã¨P0.45 | |
| BLC | ON | |
| Power voltage | DC + 6V¡À10% | |
| power consumption | 0.99W(165mA) | |
| Operating Temperature | -10 - +50¡æ(Frost-free knot) | |
| Storage Temperature | -30 - +70¡æ(Frost-free knot) | |
| Work /Storage humidity | Lower than 95£¥RH | |
| Mount | M13 P=1.0 | |
| label lens | G3.8(glass f3.8 F2.0) / P3.7(Pinhole f3.7 F4.5) | |
| Weight | About 39G(G3.8) | |
* Miniature pinhole lens are not interchangeable micro glass lenses and face to face.
* You can change the AVM - USB (optional) feature set, please refer to the AVM USB specification.
