Watec WAT-232 1/3 CCD 480TVL ICR Color Analog Camera



  • print

Watec WAT-232 1/3 CCD 480TVL ICR Color Analog Camera


Night vision is good, color reproduction and high-- sales from skycneye.com

Article Rating:

Condition:New
Model:Watec WAT-232
Product function:ICR, Day/Night(D/N)
Image sensor: 1/3" CCD Color Camera


Usually Ships in 3-5 days

Important Notice!
Item will be drop shipped directly from the
manufacturer/distortion-cancelable and
non-returnable.Usually ships in 3-5 days

Product Details

Watec WAT-232 1/3" Ultra Compact Color Day/Night Camera

The Watec WAT-232 is one of the smallest and lightest CCTV box cameras available on the market. This makes it all the more surprising that the manufacturer was able to incorporate into its tiny frame most of the features found on larger and heavier box cameras. These include a 1/3" CCD sensor, an auto iris function as well as a full complement of electronic controls. Working in concert, these allow the camera to produce visible images in light levels down to 0.006 lux in B/W mode. The camera's low light sensitivity coupled with its incredibly small size makes it the camera of choice for commercial applications looking for dependable yet minimally intrusive round-the-clock security monitoring.

Ultra Compact & Lightweight Body
    With a total length of only 2.7" and weighing less than 5.3 ounces, this is one of the smallest and lightest full featured CCTV box cameras available on the market.

Day/Night Function
    By switching from color to a near IR monochrome mode when light levels fall, this camera maintains maximum image quality 24-hours a day. In Night mode, this camera can produce visible images in light levels as low as 0.006 lux.

Simultaneous BNC & S-Video Outputs
    Video is simultaneously outputted through the camera's BNC and S-video ports. This will allow a user to securely connect the camera to a CCTV monitor via a BNC twist-lock cable and at the same time send images to a recorder using the higher quality S-video connection.

Watec WAT-232 Features:

*  Product Type: Analog cameras
*  Product Features: ICR, Day/Night(D/N)
*  Imaging Color: Color
*  Imaging Device: 1/3 inch CCD
*  Minimum illumination: Color 0.1LX/F1.2
*  SNR: 50dB
*  Video Output: BNC, Y / C
*  Power supply voltage: DC 12V ¡À 15%
*  Power: 180 mA
*  Product size: 668 x 435 x 44mm

Watec WAT-232 Specifications:

Model WAT-232
Image sensor 1/3" CCD
Sensing area(pixel) C440K
Synchronizing System Internal Synchronization
Scanning system 2:1
video output 1Vpp-75¦¸
Horizontal Resolution (level) 480Lines(Y/C480Lines)
Minimum illumination 0.1Lux F1.2(AGC High)/ Black-and-White 0.006LuxF1.2
Gain control Automatic gain control(dB) ON=8~36 (Hl) 8~24 (LO) OFF=8
S/N ratio 50dB
gray properties ¦Ã¨P0.45/1.0
BLC ON/OFF
AES EI:OFF 1/50~1/100,000 sec. EI:FL 1/120~1/100,000 sec.
MES (S)OFF(1/50),1/250,1/500,1/1000,1/2000,1/4000,1/10,000
WB Auto/Fixed/3200K£¬4200K£¬5100K£¬6300K
Auto Iris Lens VIDEO/DC
Mount CS
Working Voltage DC+10V~15V
working current (mA) 190
Storage Temperature (¡æ ) -30~+70
Operating Temperature (¡æ ) -10~+40

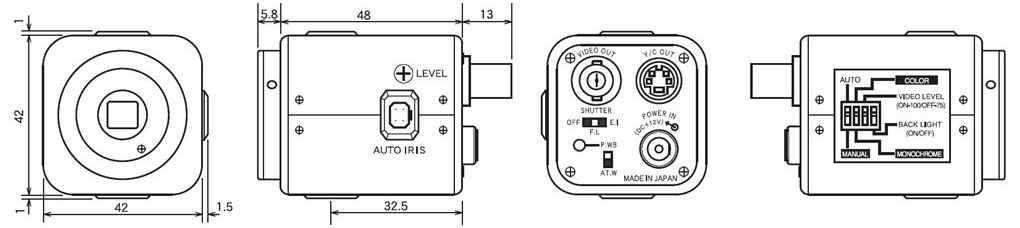

Size W¡ÁH¡ÁL(mm) 43.5x44x64.5
Weight(G) 160

Watec WAT-232 1/3 CCD 480TVL ICR Color Analog Camera
