Watec WAT-250D 1/3 CCD DC/VED 450TVL Color Analog Camera



  • print

Watec WAT-250D 1/3 CCD DC/VED 450TVL Color Analog Camera


Watec WAT-250D 1/3"0.1 LX F1.2 Mini Watec Camera-- sales from skycneye.com

Article Rating:

Condition:New
Model:Watec WAT-250D
Minimum illumination: 0.1 LX/F1.2
Horizontal Resolution : 450 TVL


Usually Ships in 3-5 days

Important Notice!
Item will be drop shipped directly from the
manufacturer/distortion-cancelable and
non-returnable.Usually ships in 3-5 days

Product Details

The Watec WAT-250D is one of the smallest and lightest CCTV box cameras available on the market. This makes it all the more surprising that the manufacturer was able to incorporate into its tiny frame most of the features found on larger and heavier box cameras. These include a 1/3" CCD sensor, an auto iris function as well as a full complement of electronic controls. Working in concert, these allow the camera to produce visible images in light levels down to 0.1 lux. This low light sensitivity coupled with the camera's incredibly small size make it the camera of choice for residential or commercial applications looking for dependable yet minimally intrusive round-the-clock security monitoring.

Watec WAT-250D Features:

*  Ultra compact and lightweight camera suitable for discreet surveillance applications
*  Excellent image quality with 1/3" CCD and 450 lines of resolution
*  Operates in extremely low light levels (0.1 lux, F1.2)
*  Auto iris function ensures properly exposed images in fluctuating light levels
*  Back light compensation function eliminates silhouetting effect in situations where the subject matter is brightly lit from behind
*  Accepts industry standard CS lenses
*  Video output :1.0V(p-p),75¦¸,BNC
*  Image sensor: 1/3" CCD
*  Imaging color: Color

Watec WAT-250D Specifications:

Model WAT-250D
Image sensor 1/3" CCD
Sensing area(pixel) P440K
Synchronizing System Internal Synchronization
Scanning system 2:1
video output 1Vpp-75¦¸
Horizontal Resolution (level) 480Lines
Minimum illumination 0.1Lux F1.2£¨AGC High£©
Gain control Automatic gain control(dB) ON=8~36 (Hl) 8~24 (LO) OFF=8
S/N ratio 50dB
gray properties ¦Ã¨P0.45/1.0
BLC ON/OFF
AES EI:OFF 1/50~1/100,000 sec. EI:FL 1/120~1/100,000 sec.
MES (S)OFF(1/50),1/250,1/500,1/1000,1/2000,1/4000,1/10,000
WB Auto/Fixed/3200K£¬4200K£¬5100K£¬6300K
Auto Iris Lens VIDEO/DC
Mount CS
Working Voltage DC+10V~15V
working current (mA) 150
Storage Temperature (¡æ ) -30~+70
Operating Temperature (¡æ ) -10~+40

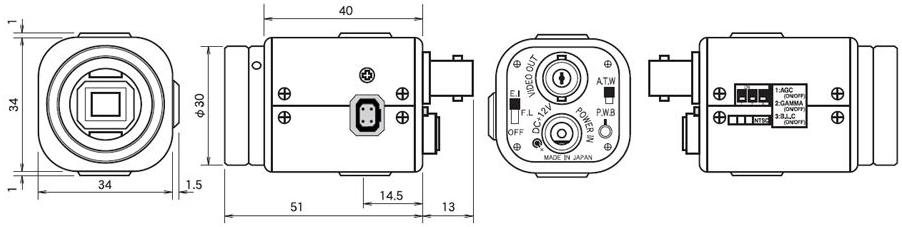

Size W¡ÁH¡ÁL(mm) 35.5¡Á36¡Á64
Weight(G) 90

Watec WAT-250D 1/3inch CCD DC/VED 450TVL Color Analog Camera
