Article Rating:
Condition:New
Model:WAT-621S
Device Type: Colour low-light cameras
Video Output: 1Vpp-75¦¸
Rated power supply: DC +12 V ~ ¡À 10%

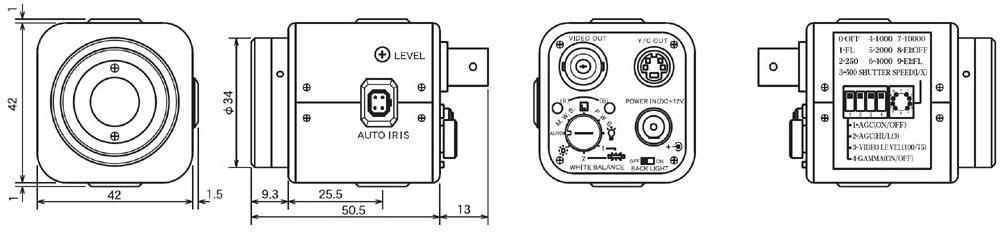

Length: 43.5MM
Width : 44MM
Height: 64.5MM
Usually Ships in 3-5 days
Important Notice!
Item will be drop shipped directly from the
manufacturer/distortion-cancelable and
non-returnable.Usually ships in 3-5 days
Product Details
Specifications:
Model | WAT-621S |
image sensor | 1/2" CCD |
Sensing area(pixel) | P440K |
Synchronizing System | Internal Synchronization |
Scanning system |
2:1 |
video output |
1Vpp-75¦¸ |
Resolution (horizontal) | 480Lines |
Minimum illumination | 0.1Lux F1.2(AGC High) |
Gain control | Automatic gain control (dB) ON=8~36 (Hl) 8~24 (LO) OFF=8 |
S/N ratio | 50dB |
Gray properties | ¦Ã¨P0.45/1.0 |
BLC | ON/OFF |
AES EI:OFF | 1/50~1/100,000 sec. EI:FL 1/120~1/100,000 sec. |
MES | (S)OFF(1/50),1/250,1/500,1/1000,1/2000,1/4000,1/10,000 |
WB | AUTO/Fixed /3200K,4200K,5100K,6300K |
Auto Iris Lens | VIDEO/DC |
Mount | CS |
Working Voltage | DC+10V~15V |
working current (mA) | 190 |
Storage Temperature (¡æ ) | -30~+70 |
Operating Temperature (¡æ ) | -10~+40 |
Size W¡ÁH¡ÁL(mm) | 43.5x44x64.5 |
Weight(G) | 160 |
