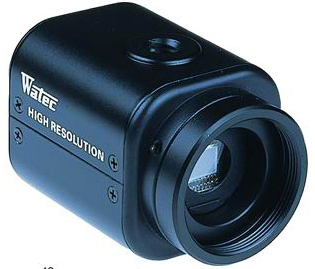

Watec WAT-902B Camera 570TV Lines 1/2inch CCD Camera



  • print

Watec WAT-902B Camera 570TV Lines 1/2inch CCD Camera


Watec WAT-902B 1/2" CCD 0.003Lux AGC Electronic iris analog cameras-- sales from skycneye.com

Article Rating:

Condition:New
Model:Watec WAT-902B
Scope: SMEs
Device Type: analog cameras
Image resolution (dpi): 570TVL
Display size: 1/2 inch CCD


Usually Ships in 3-5 days

Important Notice!
Item will be drop shipped directly from the
manufacturer/distortion-cancelable and
non-returnable.Usually ships in 3-5 days

Product Details

The Watec WAT-902B 1/2" 570TVL High Sensitivity Monochrome Camera (EIA) offers high sensitivity and resolution in an ultra compact size camera .
A variety of internal controls are included to ensure image quality in various lighting environments, making it ideal for security and machine vision applications.

Watec WAT-902B Camera Features:

*  Watec WAT-902B 1/2" Interline transfer CCD Image sensor,
*  RCA Video Out and Auto Iris Connection,
*  EIA Signal System,
*  High Resolution: 570 TVL,
*  Super low light sensitivity 0.003 Lux @ F1.4,
*  AGC,
*  Shutter speed control,
*  Electronic iris,
*  Flickerless mode,
*  Back light compensation,
*  Gamma correction,
*  CS lens mount,
*  Image color is black and white,
*  The minimum illumination 0.003 lux,
*  Horizontal resolution 570 TVL;
*  Watec WAT-902B performance better.

Watec WAT-902B Camera Specifications:

Model WAT-902B (EIA) WAT-902B (CCIR)
Pick-up element 1/2 inch interline transfer CCD image senso
Number of total pixels 811(H) x 508(V) 795(H) x 596(V)
Number of effective pixels 768(H) x 494(V) 752(H) x 582(V)
Unit cell size 8.4¦Ìm(H) ¡Á 9.8¦Ìm(V) 8.6¦Ìm(H) ¡Á 8.3¦Ìm(V)
Synchronizing system Internal
Scanning system 2:1 interlace
Video output Composite Video, 1Vp-p, 75ohms, unbalanced
Resolution (H) 570TVL (Center)
Minimum illumination 0.003x F1.4
S/N More than 50dB (AGC=10dB,¦Ã=1.0)
AE mode Fixed 1/60, 1/100 sec. 1/50, 1/120 sec.
EI 1/60 - 1/100000 sec. 1/50 - 1/100000 sec.
AGC ON HI: 5 - 32dB / LO: 5 - 20dB
OFF 10dB
Gamma characteristics ¦Ã¨P0.45(ON) /¦Ã=1.0(OFF)
Lens-iris Video (Watec original arrangement)
Back light compensation ON/OFF
Power supply DC+12V¡À10%
Power consumption 1.74W (145mA)
Operating temperature -10¡ãC- +40¡ãC
Storage temperature -30¡ãC- +70¡ãC
Operating / Storage humidity Less than 95% RH (Without condensation)
Lens mount CS mount
Weight Approx. 90g

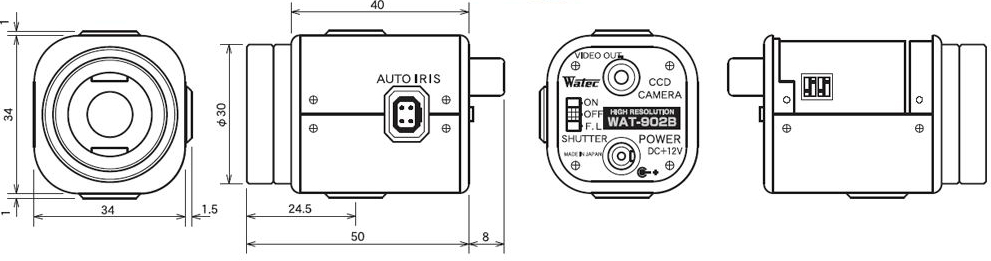

SizeW¡ÁH¡ÁL(mm) 35.5¡Á36¡Á58

Watec WAT-902B Camera 570TV Lines 1/2inch CCD Camera
Watec WAT-902B CCD Camera
