Article Rating:
Condition:New
Model:Watec WAT-902H3
Scope: SMEs
Image resolution (dpi): 570LVL
Display size: 1/3 "
Video Output: 1Vpp-75¦¸
Minimum illumination: 0.0005Lux F1.4 (AGC: High)
Effective pixels: C440K
Usually Ships in 3-5 days
Important Notice!
Item will be drop shipped directly from the
manufacturer/distortion-cancelable and
non-returnable.Usually ships in 3-5 days
Product Details

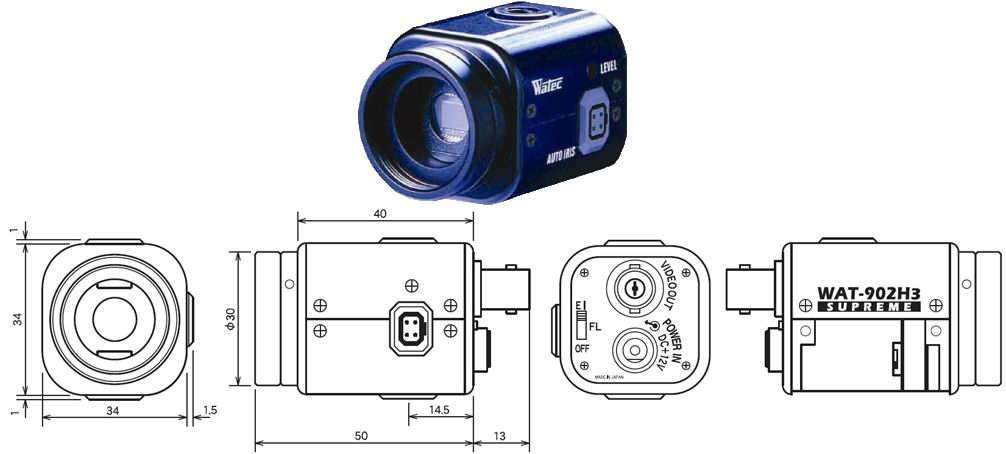

The Watec WAT-902H3 SUPREME 1/3" Super High Sensitivity Monochrome Camera offers super high sensitivity (near IR) and high resolution in an ultra compact camera.
The Watec WAT-902H3 camera features a variety of internal controls designed to ensure image quality in various lighting environments including low-light conditions
Watec WAT-902H3 Camera Features:
* Watec WAT-902H3 1/3" CCD Camera
* Effective Pixels (K) C440K, internal synchronization,
* Scanning System: 2:1,
* Video Output: 1Vpp-75¦¸,
* Resolution (horizontal): 570LVL,
* Minimum Illumination (Lux): 0.0005Lux F1.4 (AGC: High),
* Watec WAT-902H3 good performance.
Watec WAT-902H3 CCD Camera Specifications:
| Model | WAT-902H3 |
| Image sensor | 1/3" CCD |
| Sensing area(pixel) | C440K |
| Resolution | 570LVL |
| Minimum illumination | 0.0005Lux F1.4(AGC:High) |
| Gain control | High:5~50 Low:5~32 |
| S/N ratio | 46dB |
| ¦Ã¨P0.45 | |
| Electronic Shutter (S) | Fixed electronic shutter OFF£¨1/50£© Flicker Filter ( F.L) (1/120) AES EI£¨1/50~1/100£¬000sec£© |
| Auto Iris Lens | VIDEO/DC |
| Lens mount | CS |
| Power supply | DC+12V~¡À10% |
| working current(mA) | 160 |
| Storage Temperature (¡æ) | -30~+70 |
| Operating Temperature (¡æ ) | -10~+40 |
| Outside Size W¡ÁH¡ÁL(mm) | 35.5¡Á36¡Á58 |
| Weight£¨G£© | 90 |
