Condition:New
Model:Watec WAT-902HB2S
Coal mine specific products
Usually Ships in 3-5 days
Important Notice!
Item will be drop shipped directly from the
manufacturer/distortion-cancelable and
non-returnable.Usually ships in 3-5 days
Product Details

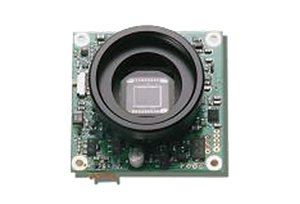

Watec WAT-902HB2S High-Res B/W Board Camera, 1/2" Interline Transfer CCD image sensor, 570 TVL Super High Resolution, 0.0003 Lux @ fl.4 (AGC High), Power Supply: DC +9.0~15V (12V+/-15%), Back light Compensation: ON .
Watec WAT-902HB2S Features:
* Star Ultra low-light monochrome camera 570 lines high-resolution DC / VIDEO dual drive
* Industrial Design specializes in dark environment monitoring
* Matec WAT-902HB2S is a mine-specific camera
* 570 TV Lines Resolution
* Low Light Sensitivity
* Auto Gain Control
* Back Light Compensation
* 1/2" CCD camera with Resolution of 570 TV Lines
* Minimum Illumination: 0.0003 Lux @ fl.4 (AGC High)
* Number of Pixels: EIA: 811 (H) X 508(V); CCIR: 795(H) X 596 (V)
* Pick-Up Element: 1/2" B&W CCD Image Sensor
* S/N Ratio: >46db (AGC OFF)
* Lens Mount: "CS" Mount
* AGC: ON/OFF- High/Low
* Back light Compensation: ON
* Power Supply: DC +9.0~15V (12V+/-15%)
Watec WAT-902HB2S Specifications:
| Model | WAT-902HB2S (EIA) | WAT-902HB2S (CCIR) | ||
| Pick-up element | 1/2 inch interline transfer CCD image senso | |||
| Number of total pixels | 811(H) x 508(V) | 795(H) x 596(V) | ||
| Number of effective pixels | 768(H) x 494(V) | 752(H) x 582(V) | ||
| Unit cell size | 8.4¦Ìm(H) ¡Á 9.8¦Ìm(V) | 8.6¦Ìm(H) ¡Á 8.3¦Ìm(V) | ||
| Synchronizing system | Internal | |||
| Scanning system | 2:1 interlace | |||
| Video output | Composite Video, 1Vp-p, 75ohms, unbalanced | |||
| Resolution (H) | 570TVL (Center) | |||
| Minimum illumination | 0.0003x F1.4 | |||
| S/N | More than 50dB (AGC=10dB,¦Ã=1.0) | |||
| AE mode | Fixed | 1/60, 1/100 sec. | 1/50, 1/120 sec. | |
| 1/250, 1/500, 1/1000, 1/2000, 1/5000, 1/10000, 1/100000 sec. | ||||
| EI | 1/60 - 1/100000 sec. | 1/50 - 1/100000 sec. | ||
| AGC | ON | HI: 5 - 50dB / LO: 5 - 32dB | ||
| OFF | 5dB | |||
| Gamma characteristics | ¦Ã¨P0.45(ON) /¦Ã=1.0(OFF) | |||
| Lens-iris | Video (Watec original arrangement) | |||
| Power supply | DC+12V¡À10% | |||
| Power consumption | 1.92W (160mA) | |||
| Operating temperature | -10- +40 | |||
| Storage temperature | -30- +70 | |||
| Operating / Storage humidity | Less than 95% RH (Without condensation) | |||
| Lens mount | CS mount | |||
| Weight | Approx. 25g | |||
