Article Rating:
Condition:New
Model:WD24P_DVR
Warranty: 1 year
Usually Ships in 3-5 days
Important Notice!
Item will be drop shipped directly from the
manufacturer/distortion-cancelable and
non-returnable.Usually ships in 3-5 days
Product Details
THE 2.4GHz Wireless PEN :
Real time video , Min. 100m transmission distance without blocks,786X576 pix 520TVL;Mini Wireless camera
2.4GHz Wireless Pen Camera Selling points:
* Wireless transmission provides real time video on DVR to view effect as you record;
* Excellent night vision(Minimum Illumination 0.008Lux);
* High quality image (786 x 576pix);
* Super long continuous working time(1.3 hours);
* Min. 100m transmission distance without blocks;
* Professional design for business men and students.
Application:
You can hang it on pocket, place it on a desk, and even hold it in hand to write;It starts transmitting! It's ideal for businessmen, law enforcement agencies and journalists, professional to fulfill their undercover assignments: such as evidence collection, hidden investigations, surveillance, etc. It's also great as a toy for hobby enthusiasts, as for body worn solutions.
2.4GHz Wireless Pen Camera Specification:
Item | Value | |
Transmission Frequency | 2.4G | 2414Mhz(CH1); 2468MHz(CH4) |
2.3G | 2370Mhz(CH1); 2510MHz(CH4) | |
Audio subcarrier frequency | 6.0Mhz | |
Antenna |
Built-in 2.4G antenna | |
Transmitting Range |
300 feet in line of sight | |
CMOS Total Pixels | 786 x 576(PAL) 656 x 492(NTSC) | |
Horizontal resolution |
520TV line | |
Minimum Illumination | 0.008Lux / F1.5 | |
Built-in mic. |
55dB high sensitivity | |
View Angle | 55 | |
camera lens focus |
Beyond 3m vicinity:10mm | |
Transmission Power | 10mW | |
Battery Performance | Li-ion Battery 160mAH | |
Working Time | 1.3 hours | |
Charge time |
1.5 hour | |
Operating voltage |
DC 5V | |
Operating current |
105MA | |
Dimensions( LX D) |
144X14.5 mm | |
Weight | 30g |

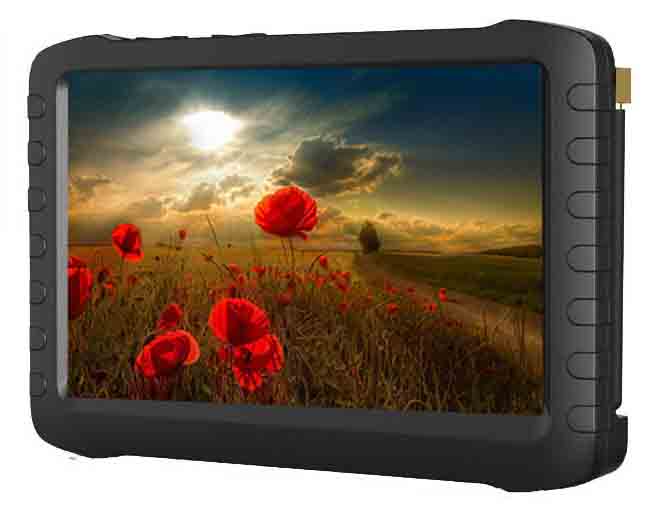

HD 2.4GHz wireless mini DVR 5inch TFT support 32G SD card:
Parameter:
* 5-inch super large HD screen (800X480pix), which provides clear and smooth image,mini size and portable recorder with fashionable & new design;
* Built-in 3200mAh high capacity Li-battery provides super long recording time up to 9.5 hours;
* Supports storage up to 32G TF card, which records up to 32 hours;
* Supports 2.4GHz & 5.8GHz wireless frequency;
* 8 channels auto/manual switch;
* Folding hidden external antenna assures excellent wireless receiving;
* Supports AV IN function: receiving signal from wired cameras;
* Photo function: it can take, review & store pictures;
* Supports intelligent motion detect video recording;
* Overwrite: It supports loop recording, which can automatically overwrite when storage is full;
* Seamless continuous record:No intermittent recording, it will not miss any detail and wonderfulness;
* Support power-saving mode: automatic shutdown, automatic off-screen;
* Equipped with full set of mounting brackets, it can be hand-held, stand desktop, hanging on the wall, placed inside the car, different occasions;
* It's of high compatibility, which supports almost all computer operating system, including MAC;
* Supports multi-language.
HD 2.4GHz wireless mini 5inch DVR Specifications:
Items | Value | |
Wireless Receiving | 2.4GHz ¨C8 channels | CH1: 2414MHz; CH2: 2432MHz; CH3: 2450MHz; CH4: 2468MHz. |
( Choose 1 group of frequency from 2.4G/within 5.8G/beyond 5.8G) | CH5: 2490MHz; CH6: 2510MHz; CH7: 2390MHz; CH8: 2370MHz | |
Within 5.8G¡ª8 channels | CH1: 5865MHz; CH2: 5845MHz; CH3: 5825MHz; CH4: 5805MHz. | |
¡¡ | CH5: 5785MHz; CH6: 5765MHz; CH7: 5745MHz; CH8: 5725MHz | |
¡¡ | Beyond 5.8G¡ª8 channels | CH1: 5705MHz; CH2: 5685MHz; CH3: 5665MHz; CH4: 5645MHz. |
¡¡ | CH5: 5885MHz; CH6: 5905MHz; CH7: 5925MHz; CH8: 5945MHz | |
¡¡ | Sensitivity | -92dB |
¡¡ | Receiving distance | 100 meters |
AV IN | TV system | NTSC / PAL |
Output voltage | 3.6-4.2 V | |
HD 5-inch LCD screen | Active area | 108mm(W) X 64.8mm(H) |
Resolution | 800 X 480 Pixel | |
Luminance for LCM | 200 cd/©O | |
Cape clear 5-inch LCD screen | Active area | 118mm(W) X 62.8mm(H) |
Resolution | 480 X 272 Pixel | |
Luminance for LCM | 300cd/©O | |
Video | Resolution | 720*576 / 640*480 |
Video compress | MPEG-AVI 30fps | |
Play format | MPEG-AVI | |
Audio | Frequency | 20HZ-20KHz stereo |
Earphone Output | Left: 20MW+ right 20mW [16O](suit to largest volume) | |
Speaker | 1W | |
Photo | Format | JPG/JPEG |
Storage | External SD card | TF card 1GB-32GB(optional) |
32GB recording time | 10-32 hours | |
1GB photos | 15625pcs | |
Operating system | PC | Windows & Mac OS |
Port | USB 2.0 | |
Language | Multiple | |
Power | Voltage | DC 5V |
Current(receiving mode) | 660MA | |
Current( recording mode) | 680MA | |
Current(recording with off-screen mode) | 340MA | |
AC adapter | DC 5V 2A | |
Built-in battery | Li-battery 3200mAh | |
Standby time | Wireless record | ¡Ý9.5 hours(off-screen); ¡Ý5hours(on-screen) |
Wired record | ¡Ý12 hous(off-screen); ¡Ý6hours(on-screen) *LED camera not included. | |
Size (L x W x H) | 131mm x 86mm x 18mm | |
Weight(g) | 205g |
The package:
1 * Pen Camera
1 * Wireless dvr
1 * User Manual
1 * USB Cable
1 * Power Charger
1 * AV Cable
