30M Cable Night Vision Mini Underwater Fish Finder Camera And 5inch DVR



  • print

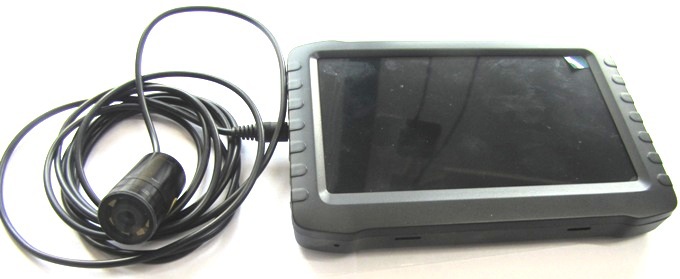

30M Cable Night Vision Mini Underwater Fish Finder Camera And 5inch DVR


Underwater camera with 30m cable, 8 LEDs , 90 deg angle, 5inch LCD Monitor-- sales from skycneye.com

Article Rating:

Condition:New
Model:WCV8LED_DV
Warranty 1 Years!


Usually Ships in 3-5 days

Important Notice!
Item will be drop shipped directly from the
manufacturer/distortion-cancelable and
non-returnable.Usually ships in 3-5 days

Product Details

Main Features

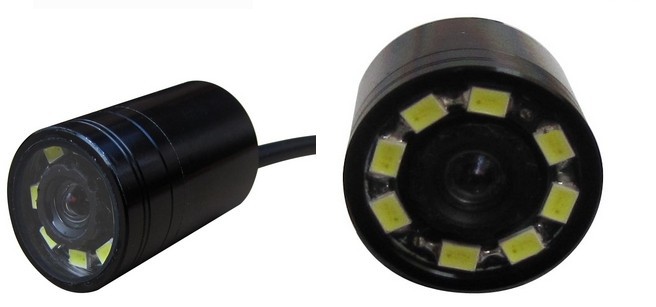

*  8 LEDs enable the effective night vision distance up to 5 meters;
*  High luminous flux (F1.2) and wide view angle (90<) mini lens;
*  Surveillance area up to 100 square meters in the complete darkness;
*  Small size, which is easy to install into narrow room and slim tube, etc.;
*  520TVL Digital chip synthesis technology offers true color & HD video;
*  5" lcd HD monitor, support motion detect and loop recording, can take picture;
*  3200mAh battery for DVR, support 32GB card. (This DVR not including SD Card).







Camera's Specifications:

Specification
Pick up element Single chip 1/4" CMOS
Number of Pixels 728(H)x576(V)
Signal System PAL/NTSC
Sensor Dimension 3.584mm(H) x 2.688mm(V)
Horizontal Approximately 520TV lines
Sensitivity 5M
Lens & View angle 0.5mm F1.2/90<
Lamp control 1:Light(Default) 2: On-Off 3:Self-Montion
LAMP 8LED : 17600mcd
Video Out 1.0V p-p/75ohm
Lamp Control Out 1:AV(Default) 2:On-Off 3:Photosensitive Resistor
Weight Camera : 12G
Cable Length 0.5M (additional purchase for longer cable)
Work Current

DC5V: 70mA(Lamp Off)/260mA(Lamp On);

DV12V: 30mA(Lamp Off)/100mA (Lamp On)

Power requirement DC5V:(3.6-5V) DC12V:(3.6-24V)
Operating -10c to +50c , Less than 90%RH
Connection

PIN1->Red DC5V PIN2->Black GND

PIN3->Yellow VIDEO OUT PIN4->White LED Control





























Items(DVR Specification )

Value
AV IN       TV System NTSC/PAL
Output Voltage 3.6-4.2V

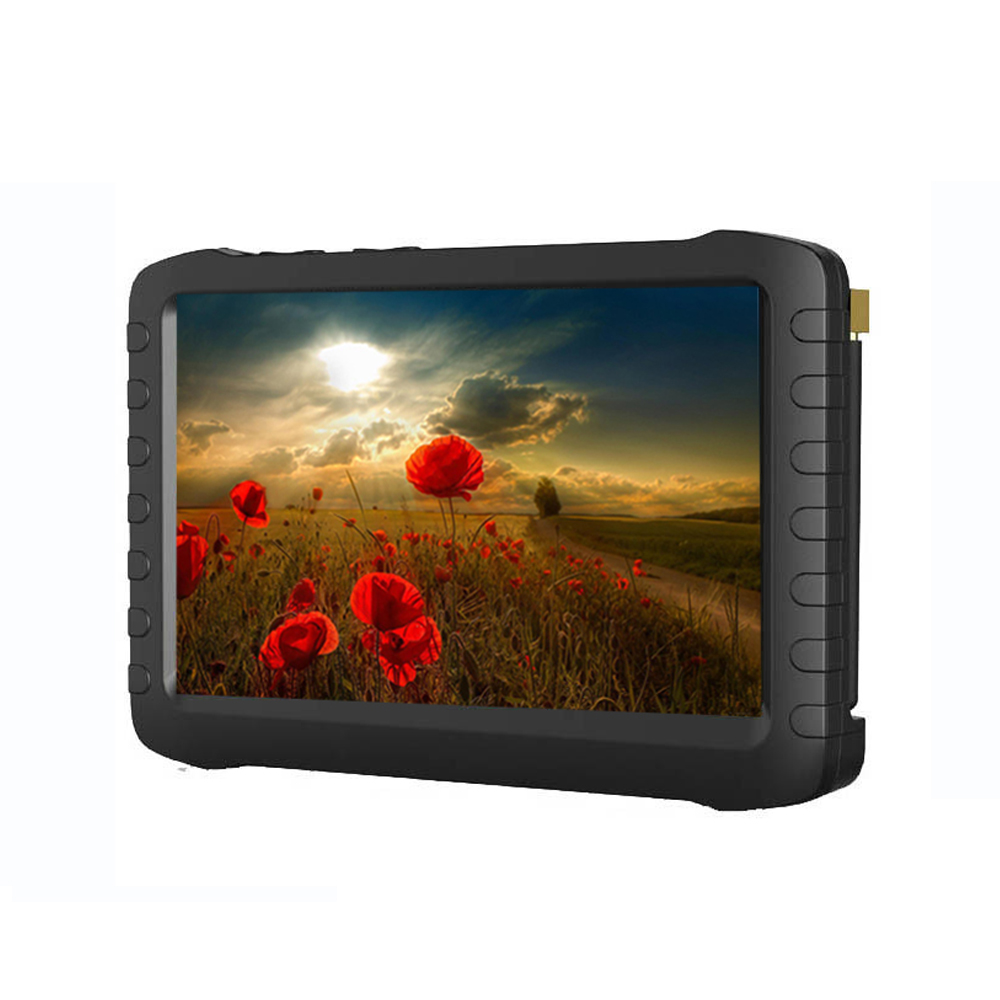

HD 5-inch LCD screen Active area 108mm(W) X 64.8mm(H)
Resolution 800 X 480 Pixel
Luminance for LCM 200 cd/O
Video Resolution 720*576 / 640*480
Video compress MPEG-AVI 30fps
Play format MPEG-AVI
Audio Frequency 20HZ-20KHz stereo
Earphone Output Left: 20MW+ right 20mW [16O](suit to largest volume)
Speaker 1W
Photo Format JPG/JPEG
Storage External SD card TF card 1GB-32GB(optional)
32GB recording time 10-32 hours
1GB photos 15625pcs
Operating system PC Windows & Mac OS
Port USB 2.0
Language Multiple
Power Voltage DC 5V
Current(receiving mode) 660MA
Current( recording mode) 680MA
Current(recording with off-screen mode) 340MA
AC adapter DC 5V 2A
Built-in battery Li-battery 3200mAh
Standby time Wireless record −9.5 hours(off-screen); −5hours(on-screen)
Wired record −12 hous(off-screen); −6hours(on-screen) *LED camera not included.
Size (L x W x H) 131mm x 86mm x 18mm
Weight(g) 205g

How to use:

1) Connect camera and monitor
2)Open the monitor, then you can live watch video and record
Camera is powered by monitor, monitor is powered by built-in Li- battery

Package:

* Underwater camera with 30m cable x1
* 5inch LCD monitor X 1unit
* User manual X 1 PC
* Stereo earphone X 1unit
* USB Cable X1 PC
* AC adapter X1 unit
* Back holder for installation  X 1 pc
