Home > Mini Spy Camera > > 5M Mini Waterproof 520TVL Mini Underwater Mini Fishing/Fish Finder LED Video Camera

5M Mini Waterproof 520TVL Mini Underwater Mini Fishing/Fish Finder LED Video Camera



  • print

5M Mini Waterproof 520TVL Mini Underwater Mini Fishing/Fish Finder LED Video Camera


0.5M long cable, 12V 520TVL , 8 LEDs , 90 deg angle-- sales from skycneye.com

Article Rating:

Condition:New
Model:WCV8LED
Warranty 1 Years !


Usually Ships in 3-5 days

Important Notice!
Item will be drop shipped directly from the
manufacturer/distortion-cancelable and
non-returnable.Usually ships in 3-5 days

Product Details

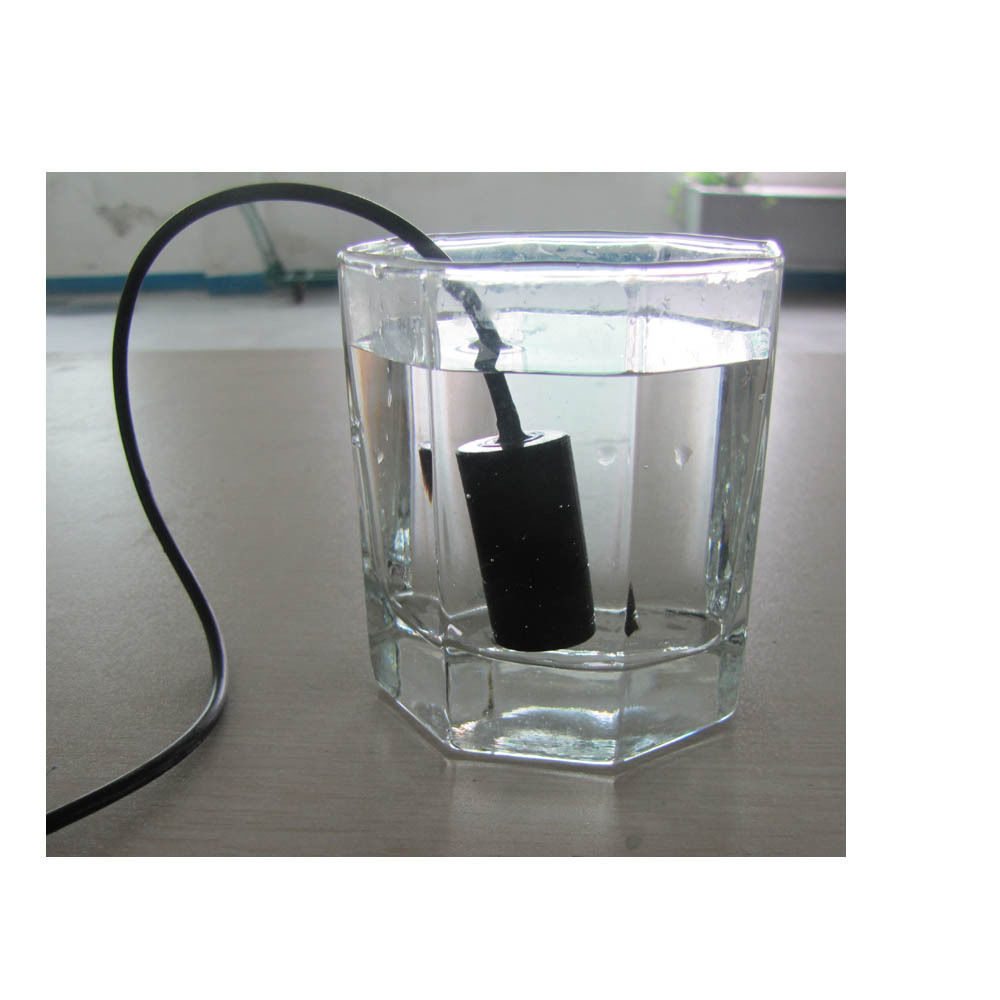

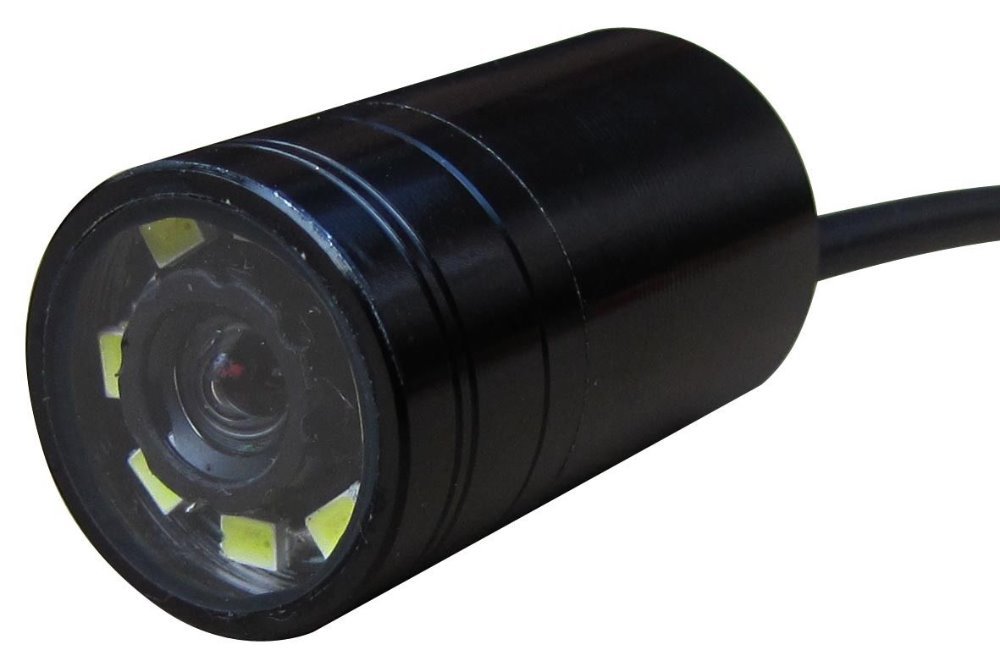

The Mini underwater camera have high sensitive CMOS sensor, high luminous flux (F1.2) and wide view angle (90กใ) mini lens.
It have 8 controllable LED lamps enable the effective recording distance up to 5 meters, and surveillance area up to 100 square meters in the complete darkness.
This camera is very small volume and light weight, high stability and ultra long working life.
They are very suitable for day & night hidden surveillance, project monitoring, and equipment maintenance, etc.

Mini Underwater Features:
*  8 LEDs enable the effective night vision distance up to 5 meters;
*  High luminous flux (F1.2) and wide view angle (90กใ) mini lens;
*  Surveillance area up to 100 square meters in the complete darkness;
*  Small size, which is easy to install into narrow room and slim tube, etc.;
*  520TVL Digital chip synthesis technology offers true color & HD video.






Mini Underwater Specification:

Pick up element Single chip 1/4" CMOS
Number of Pixels 728(H)x576(V)
Signal System PAL/NTSC
Sensor Dimension 3.584mm(H) x 2.688mm(V)
Horizontal Approximately 520TV lines
Sensitivity 5M
Lens & View angle 0.5mm F1.2/90กใ
Lamp control 1:Light(Default) 2: On-Off 3:Self-Montion
LAMP 8LED : 17600mcd
Video Out 1.0V p-p/75ohm
Lamp Control Out 1:AV(Default) 2:On-Off 3:Photosensitive Resistor
Weight Camera : 12G
Cable Length 0.5M (additional purchase for longer cable)
Work Current

DC5V: 70mA(Lamp Off)/260mA(Lamp On);

DV12V: 30mA(Lamp Off)/100mA (Lamp On)

Power requirement DC5V:(3.6-5V) DC12V:(3.6-24V)
Operating -10c to +50c , Less than 90%RH

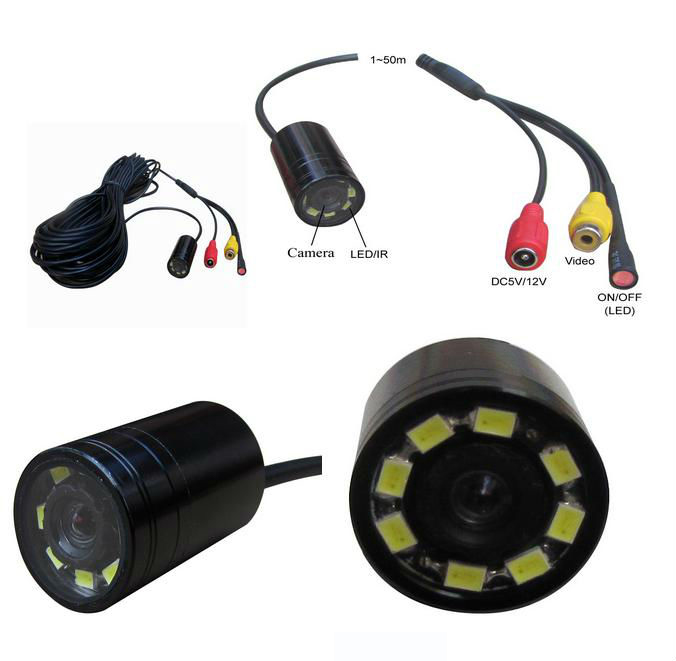

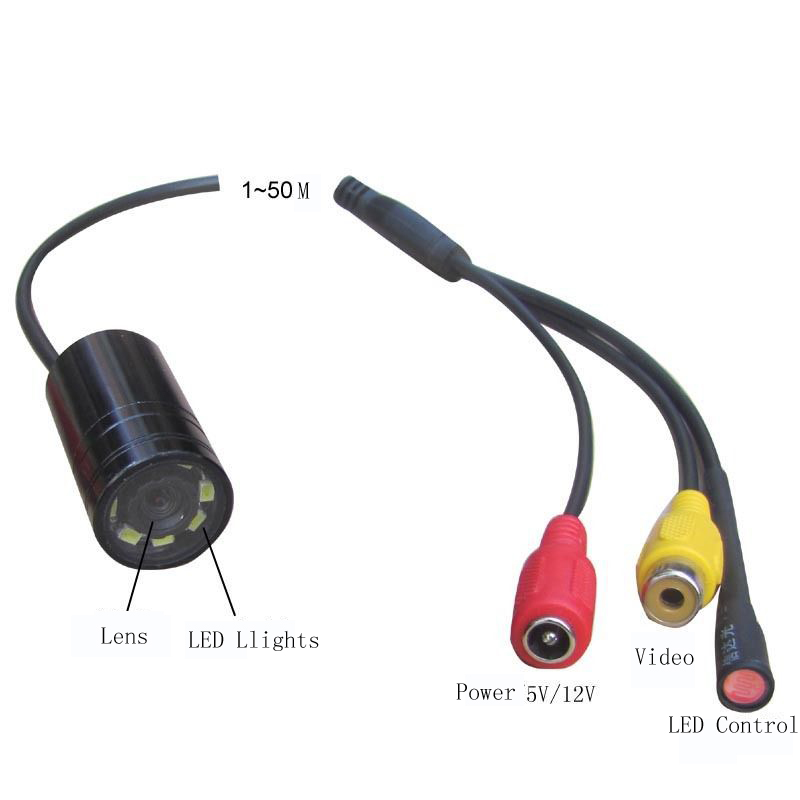

Connection

PIN1->Red DC5V PIN2->Black GND

PIN3->Yellow VIDEO OUT PIN4->White LED Control
