Home > Mini Spy Camera > > Wireless Head-mounted Mini Camera and 2.4GHz 5inch Wireless DVR Monitor Video Camera System

Wireless Head-mounted Mini Camera and 2.4GHz 5inch Wireless DVR Monitor Video Camera System



  • print

Wireless Head-mounted Mini Camera and 2.4GHz 5inch Wireless DVR Monitor Video Camera System


Head-mounted 6 LED 5m night view , 5"screen,loop recording,motion detection,Wireless Head-mounted Mini Camera-- sales from skycneye.com

Article Rating:

Condition:New
Model:MINISTE80HB
Warranty 1 year !


Usually Ships in 3-5 days

Important Notice!
Item will be drop shipped directly from the
manufacturer/distortion-cancelable and
non-returnable.Usually ships in 3-5 days

Product Details

It's a new product combined the technology of electronics, optics and 2.4GHz wireless. It's very small size and light weight, very convenient to carry.
It is applicable to Head-mounted, Wearing Mini Camera .

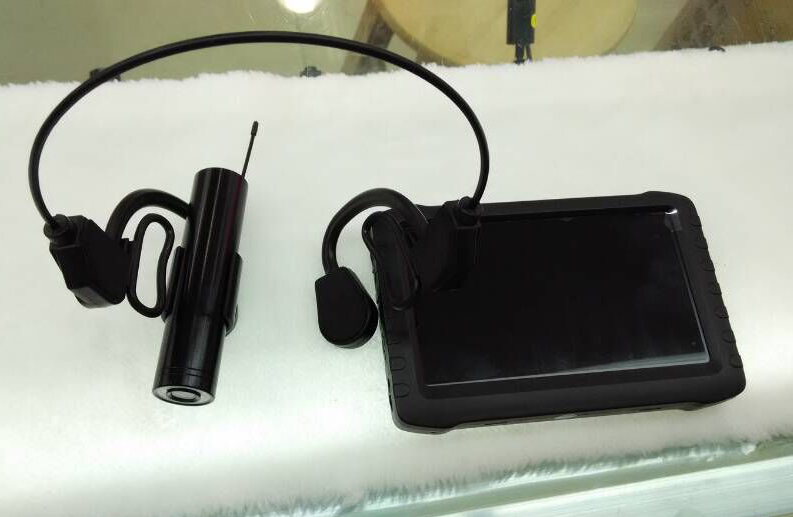

Wireless Head-mounted Mini Camera + 2.4GHz wireless camera DVR receiver monitor 5-inch screen .

It can be used in the dangerous & complicated surroundings, like high-altitude working. It's easy operated and powered by high capacity Li-battery with 1.5 hours continuous working time. High brightness LED/IR offers long visible range up to 8 meters. Moreover, it offers high definition video and good performance. If it works with our wireless DVR-TE968H, users can as inspect according to video, as record. Look over some recorded video repeatedly. If the video is not satisfactory, users can delete it and rerecord. DVR memory is large up to 32GB.If it works with wireless USB receiver, users can view instant video in computer, and record, edit and print the inspection report.

Application:
Auto engine and gearing inspection; Medical inspection, like dental, skin disease, gynecology, etc.; All kinds of pipe & tube, building inspection; Antiterrorism search & rescue; Safety inspection; Archeology,Head-mounted / Wearing Mini Camera ,etc.

Wireless Head-mounted Mini Camera and 2.4GHz 5inch Wireless DVR Monitor Video Camera System

Wireless Head-mounted Mini Camera and 2.4GHz 5inch Wireless DVR Monitor Video Camera System
Wireless Head-mounted Mini Camera and 2.4GHz 5inch Wireless DVR Monitor Video Camera System
Wireless Head-mounted Mini Camera and 2.4GHz 5inch Wireless DVR Monitor Video Camera System
Wireless Head-mounted Mini Camera and 2.4GHz 5inch Wireless DVR Monitor Video Camera System

Features:
* Super small size  & light weight camera & DVR, very convenient to carry;
* High resolution 720X576pix(PAL),720x480pix(NTSC),520TVL camera offers good quality video;
* 6 LED/IR lamps offers 5 or 8 meters clear view in complete darkness;(LED can be highlight or turned off;IR is invisble light);
* High capacity built-in Li-battery offers power supply for camera and DVR anywhere;
* No need any installation, and very easy to operate, just power on and it works!
* First complete wireless mini inspection camera with LED in the world!
* Portable 5-inch HD(800X480pix) DVR offers both real time and recorded videos & photos;
* Motion detect recording and loop recording available;
* Large memory available( support mini SD card up to 32GB)
* Wireless transmission offers convenience for remote view.

Borescope Camera Specifications:

Frequency 2414Mhz(CH1)
RF Output Power 50mW (300 feet in line of sight)
Total Pixels PAL:720 X 576 NTSC:720 X 480
Minimum Illumination 0.01Lux / F1.2
Lens Focus 1-100cm (adjustable)
View Angel 90
Light Source LED 2200mcd x 6 Range of LED lamp: 5 meters
IR/940nm 70mW x 6 Range of IR940 lamp: 5 meters
IR/850nm 70mW x 6 Range of IR850 lamp: 8meters
Li-battery Capacity 380MAH
Working Time 1.5 hours
Charge Time 1.5 hours
Voltage DC 5V
Current Lamp off:160mA Lamp on: 260mA Lamp highlight:300mA
Weight 35g
Size(DXL) 20mm X 84mm

















Wireless Head-mounted Mini Camera and 2.4GHz 5inch Wireless DVR Monitor Video Camera System

2.4GHz Wireless DVR :

The latest portable mini DVR supports both wireless and wired cameras. Not only this, it adds new function of photo, motion detect, loop recording, power saving (auto shutdown, auto off-screen), etc. This DVR is the ideal choice for security & protection, evidence & investigation, like police, household, sports, automotive industry, shops, etc.. At the same time, with its stylish and high-end appearance,  it also becomes the fashion choice of leisure goods.


Features and functions:

*  Mini size and portable recorder with fashionable & new design;
*  5-inch super large HD screen (800X480pix), which provides clear and smooth image;
*  Built-in 3200mAh high capacity Li-battery provides super long recording time up to 9.5 hours;
*  Supports storage up to 32G TF card, which records up to 32 hours;
*  Supports wireless signal from total 24 channels among 2.4GHz & 5.8GHz (within & beyond) frequency;
*  Folding hidden external antenna assures excellent wireless receiving;
*  Supports AV IN function: receiving signal from wired cameras;
*  Photo function: it can take, review & store pictures;
*  Supports intelligent motion detect video recording;
*  Overwrite: It supports loop recording, which can automatically overwrite   when storage is full;
*  Seamless continuous record:No intermittent recording, it will not miss any  detail and wonderfulness;
*  Support power-saving mode: automatic shutdown, automatic off-screen;
*  Equipped with full set of mounting brackets, it can be hand-held, stand desktop, hanging on the wall, placed inside the car, different occasions.;
*  It¡¯s of high compatibility, which supports almost all computer operating system, including MAC;
*  Supports multi-language.

Specifications:

Items Value
Wireless Receiving 2.4GHz-8 channels CH1: 2414MHz; CH2: 2432MHz; CH3: 2450MHz; CH4: 2468MHz.
CH5: 2490MHz; CH6: 2510MHz; CH7: 2390MHz; CH8: 2370MHz
Sensitivity -92dB
Receiving distance 100 meters
AV IN TV system NTSC / PAL
Output voltage 3.6-4.2 V
HD 5-inch LCD screen Active area 108mm(W) X 64.8mm(H)
Resolution 800 X 480 Pixel
Luminance for LCM 200 cd/M2
Cape clear 5-inch LCD screen Active area 118mm(W) X 62.8mm(H)
Resolution 480 X 272 Pixel
Luminance for LCM 300cd/M2
Video Resolution 720*576 / 640*480
Video compress MPEG-AVI 30fps
Play format MPEG-AVI
Audio Frequency 20HZ-20KHz stereo
Earphone Output Left: 20MW+ right 20mW [16O](suit to largest volume)
Speaker 1W
Photo Format JPG/JPEG
Storage External SD card TF card 1GB-32GB(optional)
32GB recording time 10-32 hours
1GB photos 15625pcs
Operating system PC Windows & Mac OS
Port USB 2.0
Language Multiple
Power Voltage DC 5V
Current(receiving mode) 660MA
Current( recording mode) 680MA
Current(recording with off-screen mode) 340MA
AC adapter DC 5V 2A
Built-in battery Li-battery 3200mAh
Standby time Wireless record 9.5 hours(off-screen);5hours(on-screen)
Wired record 12 hous(off-screen); 6hours(on-screen) *LED camera not included.
Size (L x W x H) 131mm x 86mm x 18mm
Weight(g) 205g

Wireless Head-mounted Mini Camera and 2.4GHz 5inch Wireless DVR Monitor Video Camera System

Packages:

* DVR X 1PCS
* User manual x1pcs
* Stereo earphone x1 pcs
* USB cable x1pcs
* AC adapter x1pcs
* Camera seat x1 pcs
* Back holder for installation x1 pcs
