Home > Watec Cameras > > Watec WAT-631S CCD Camera Color Low Illumination Cameras

Watec WAT-631S CCD Camera Color Low Illumination Cameras



  • print

Watec WAT-631S CCD Camera Color Low Illumination Cameras


-- sales from skycneye.com

Article Rating:

Condition:New
Model:Watec WAT-631S
Scope: SMEs
Device Type: light camera
Image resolution (dpi): 480Lines
Video Output: 1Vpp-75¦¸


Usually Ships in 3-5 days

Important Notice!
Item will be drop shipped directly from the
manufacturer/distortion-cancelable and
non-returnable.Usually ships in 3-5 days

Product Details

Watec WAT-631S Camera have 480TVL 0.1 Lx gain and high resolution of the lowest illuminance of gamma correction is optional.
Excellent quality, are suitable for monitoring and image collection.

WATEC WAT-631C Camera Features:

*  Watec WAT-631S
*  Resolution (horizontal): 480Lines,
*  Minimum Illumination (Lux): 0.1Lux F1.2 (AGC High),
*  Automatic automatic gain control (dB): ON = 8-36 OFF = 8,
*  SNR (dB): 50,
*  Gray Features: ¦Ã 0.45/1.0,
*  Backlight Compensation: ON / OFF,
*  Electronic shutter mode: EI 1/50-1/100, 000 sec.FL 1/120 sec. OFF 1/50 sec,
*  Automatic iris control: VIDEO / DC .

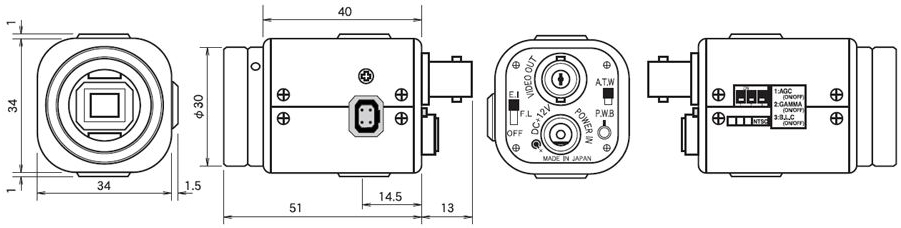

Watec WAT-631S Specifications:

Model WAT-631S
image sensor 1/3" CCD
Sensing area(pixel) P440K
Synchronizing System Internal Synchronization
Scanning system
2:1
video output
1Vpp-75¦¸
Resolution (horizontal) 480Lines
Minimum illumination 0.1Lux F1.2£¨AGC High£©
Gain control Automatic gain control (dB) ON=8~36 (Hl) 8~24 (LO) OFF=8
S/N ratio 50dB
Gray properties ¦Ã¨P0.45/1.0
BLC ON/OFF
AES EI:OFF 1/50~1/100,000 sec.
EI:FL 1/120~1/100,000 sec.
MES (S)OFF(1/50),1/250,1/500,1/1000,1/2000,1/4000,1/10,000
WB AUTO/Fixed /3200K£¬4200K£¬5100K£¬6300K
Auto Iris Lens VIDEO/DC
Mount CS
Working Voltage DC+10V~15V
working current (mA) 150
Storage Temperature (¡æ ) -30~+70
Operating Temperature (¡æ ) -10~+40
Size W¡ÁH¡ÁL(mm) 35.5¡Á36¡Á64
Weight(G) 90

Watec WAT-631S CCD Camera Color Low Illumination Cameras
